People Counter | FootfallCam 3D Pro2 | 3D Stereoscopic Vision People Counter
FootfallCam 3D Pro2 with 3D Stereoscopic Vision People Counter, designed to support low ceiling height counting and run complex video processing algorithms.
  • FootfallCam 3D Pro2 - Front View
  • FootfallCam 3D Pro2 - Left View
  • FootfallCam 3D Pro2 - Right View
  • FootfallCam 3D Pro2 - Installation

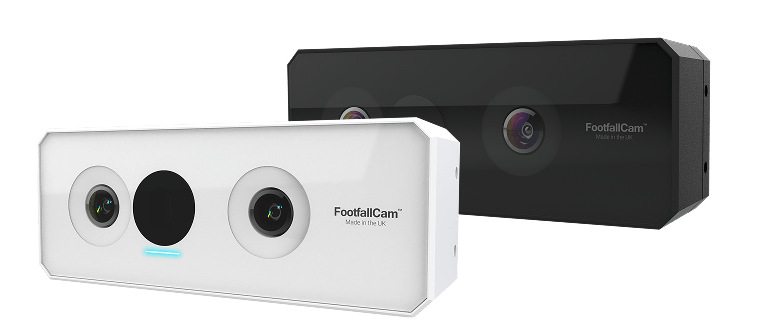

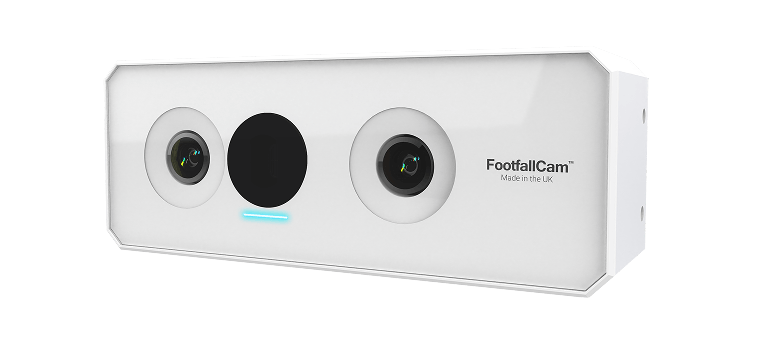

FootfallCam 3D Pro2™

3D Stereoscopic Vision People Counter

  • AI Powered 3D Stereo Vision People Counting
  • Superior Processing power- improved 3D counting accuracy
  • Low-light/ Night mode counting
  • Splash-proof
  • FootfallCam In-House Manufactured Product: Made in the UK

About this item

FootfallCam 3D Pro2™ is specially designed to support low ceiling height (as low as 2.1m) counting. Embedded with a powerful 1.2GHz Quadcore processor, it is packed with feature upgrades while maintaining performances of its predecessors. Specifically designed to run complex video processing algorithms, the GPU runs our AI-based algorithms which utilizes depth, colour and texture pattern to identify a person, producing superior accuracy compared to using colour pattern alone. The built-in sensor further improves accuracy in low-light, indoors and high noise environments. Delivered in Splash proof case, the overall form factor is more compact and inconspicuous than ever.

Send Us Catalogs and Price List

Downloads

  • FootfallCam Product Catalogue PDF
    FootfallCam 3D Pro2 Datasheet (322 KB)
  • FootfallCam Product Catalogue PDF
    FootfallCam Product Catalogue (3 MB)
FootfallCam Pro2 - Banner Title
FootfallCam Pro2 - Banner Image
FootfallCam Pro2 - High Accurancy

Highest Accuracy

3D Stereovision Video Counting with 25 FPS, 8MP | AI Analytics On Object Classification

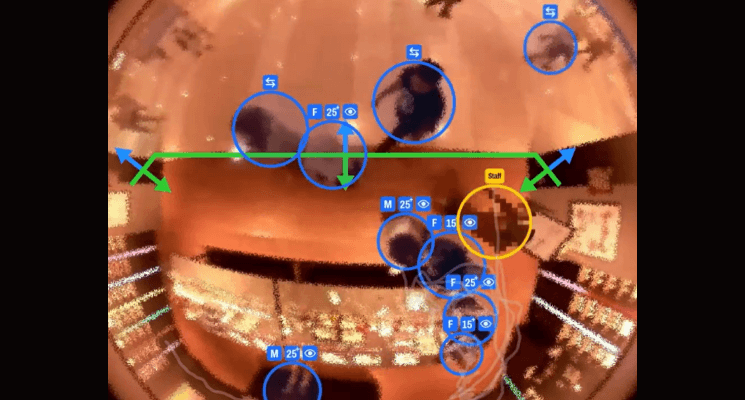

Combining 3D stereoscopic image processing and AI video analytics together with advanced tracking algorithms, FootfallCam 3D Pro2™ People Counter is optimised to achieve up to 99.5% accuracy, even in environmentally challenging conditions. Embedded with a powerful 1.2GHz Quadcore processor, it is designed specifically to run complex video processing and AI-based algorithms with superior processing power.

Object Classifications

Wheelchair | Trolley | Kids | Gender | Staff Exclusion

Utilising the 3D depth map captured by dual lens, it allows the FootfallCam 3D Pro2™ people counter to determine the height and size of the moving objects, and distinguish the objects from the people using AI algorithms. This helps to exclude the object, such as wheelchairs, trolleys, carts and strollers from the counting.

Watch Video
Your browser does not support the video tag.
FootfallCam 3D Pro2 - Normal In Out
FootfallCam 3D Pro2 - Multiple
FootfallCam 3D Pro2 - Heatmap
FootfallCam 3D Pro2 - Heatmap

One Device, Multiple Applications

Offers deployment flexibility for both short term and long term use

Supports multiple counting functions in a single device, in which users can use interchangeably or relocate to use for other functions.

  • In/Out counting at entrances - Count the number of visitors entering and exiting the stores
  • Multiple counting lines - Count the number of visitors entering different areas
  • Queue counting - Measure the queue length, waiting time and serving time
  • Heatmap - Track the visitor engagement at different zones of interest

Wi-Fi Counting

Returning Customers | Visit Duration | Outside Traffic

With the Wi-Fi capturing technology, the people counter is able to detect the number of smart devices within the range of Wi-Fi detection. With this, the people counter is capable of providing in depth Wi-Fi analytics and business metrics such as zone analytics, dwell time, passerbys, turn in rate, traffic flow, returning customers and cross shopping.

FootfallCam Pro2 - Wifi Counting

Optimised for All Environments


Low Ceiling | Splash Proof | Counting under Low Light

FootfallCam 3D Pro2™ is designed to count accurately with highest precision, even under all extreme conditions. It supports most of the ceiling heights, as low as 2.1m to 4.5m. The built-in sensor further improves accuracy in low-light, indoors and high noise environments, even in complete darkness. Enclosed in splash proof casing, it is designed specifically to reduce the common issue of water damage due to unforeseen circumstances such as water leakage on the ceiling.

FootfallCam 3D Pro2 - Low Ceiling FootfallCam 3D Pro2 - Low Ceiling Icon

Low Ceiling

FootfallCam FootfallCam 3D Pro2 - Splash Proof FootfallCam 3D Pro2 - Splash Proof Icon

Splash Proof

FootfallCam FootfallCam 3D Pro2 - Night Vision FootfallCam 3D Pro2 -  Night Vision Icon

Night Vision

Product Specification

Read More
FootfallCam 3D MAX FootfallCam 3D MAX
Read More

Technical Details

Tracking Technology

3D-Spacing Mapping Video Tracking Technology and AI Video Analytics.

Camera Lens Spec

2x5MP

Depth Field of View

160°

Illumination

Minimum 1 lux

Ideal Mounting Height

2.1 metres - 4.5 metres

Casing

Aluminum oxide alloy

Power Supply

Power Over Ethernet

Power Consumption

6W (max. 8W)

Wireless Connectivity

Supports a network of up to 250 IoT devices via RF

Downloads

  • FootfallCam Product Catalogue PDF
    FootfallCam 3D Pro2 Datasheet (322 KB)
  • FootfallCam Product Catalogue PDF
    FootfallCam Product Catalogue (3 MB)
  • FootfallCam 3D Pro2 Installation Guide PDF
    FootfallCam 3D Pro2 Installation Guide PDF (1 MB)

Related Products

0.6m Drop Pole

Drop Pole for People Counter (0.6m)

3m Drop Pole

Drop Pole for People Counter (3m)

Wall Bracket

Wall Mount Bracket for People Counter

Staff Exclusion Tag

FootfallCam Staff Exclusion Tag™

FootfallCam 3D Mini

FootfallCam 3D Mini™

PoE Switch

FootfallCam PoE Switch™

People Counter | FootfallCam 3D Pro2 | 3D Stereoscopic Vision People Counter
FootfallCam 3D Pro2 with 3D Stereoscopic Vision People Counter, designed to support low ceiling height counting and run complex video processing algorithms.

Technical Details

Download Datasheet

DIMENSION

Device

153.7mm(W) x 58.2mm(D) x 39.5mm(H)

Packing

200mm(W) x 170mm(D) x 50mm(H)

WEIGHT

Device

0.4kg

Packing

0.85kg

CAMERA

Resolution

2x5 MP

Illumination

Minimum 1 lux

Lens Degree

160°

RAM

1 GB

Antenna Coverage

100 ft radius

Output

5MP omni-vision 5647 camera modules

Frame Rate

25 fps (Live Stream of counting will only display 320x420 resolution to reduce bandwidth sent to database for verification purpose, CCTV function displays 1080p resolution)

INDICATORS

RGB LED status indicator

CASING

Made by Aluminum oxide alloy with 1mm tempered glass lens-covering.

POWER

Consumption

6W (without IR), 8W (with IR turned on)

Cabling

Cat5e, Cat6

THERMAL CONDUCTIVITY

235W / mK

STORAGE

Built-in, 8 GBmemory External Micro SD slot (supports up to 128 GB)

IDEAL ENVIRONMENTAL

Operating Environment

Temperature 10°C to 45°C, Humidity 10% - 90%

Storage Environment

Temperature -40°C to 80°C, Humidity 10% - 95%

IDEAL MOUNTING HEIGHT

2.1 metres – 4.5 metres

TRACKING TECHNOLOGY

3D-Spacing Mapping Video Tracking Technology and background removal on static object.

WIRELESS CONNECTIVITY

Ethernet

100Mbps

Wi-Fi

Wi-Fi - IEEE 802.11 (b/g/n), 2.4Ghz, AP mode

RF

868/915Mhz ISM Band
AES-256 Encryption
10dbm TX Power
Supports a network of up to 250 IoT devices

FIELD UPGRADABLE

Manual / Auto Software upgrade

ORIGIN

Made in the UK.

POWER UNIT SPECIFICATIONS

Power Over Ethernet

Yes (IEEE802.3at)

PoE Mode

Mode B

Power Rating

48VDC (Max 30W)

AC input

110V – 240V, 50/60Hz

FIRMWARE SPECIFICATION ON COUNTER LEVEL

Interface

Http; Https

User Level

2 levels: Administrator, Standard User

Operating System

Footfall Counter OS

Ethernet

10/100 Mb Ethernet

Data Delivery

TCP/IP

Database Type

SQLite

Report format

csv, .xml, .txt

Data Storage on counter level

Hourly Data: 300 days; Raw Data: 7 days;
Wi-Fi Data: 3 days *Data which has sent to server will keep permanently in server level

Data Backup

Yes

Firmware Feature

Secure Operating System with Multicore Processor, Adaptive IR based on Lighting Conditions, Device Health Check, Built-in External Watchdog

Data Upload to Server

Every Hour

Average Data Transfer Rate*

10.0 kilobytes/hour

* Average Data Transfer Rate is measured with a pre-defined sample size of 20 requests per hour.

Product Specification

FootfallCam 3D MAX FootfallCam 3D MAX

Installation Types

FootfallCam 3D Pro2 - Standard Installation

Standard

FootfallCam 3D Pro2 - Wall Bracket

Wall bracket

FootfallCam 3D Pro2 - Drop Pole

Drop Pole

Download Datasheet

Downloads

  • FootfallCam Product Catalogue PDF
    FootfallCam 3D Pro2 Datasheet (322 KB)
  • FootfallCam Product Catalogue PDF
    FootfallCam Product Catalogue (3 MB)
  • FootfallCam 3D Pro2 Installation Guide PDF
    FootfallCam 3D Pro2 Installation Guide PDF (1 MB)
  • FootfallCam Analytics Manager v8 User Guide
    FootfallCam Analytics Manager v8 User Guide (900 KB)

FAQs

More FAQs

1. Does the counter accept PoE instead of PoE+?

Yes, our counters can work with both PoE and PoE+

2. What type of plugs does FootfallCam provide for people counter?

FootfallCam provides 4 types of power cable to the international customer:

  • Type G
  • Type B
  • Type F
  • Type I

Users that are looking for other types of power cable will need to source from their local country, or they may choose from one of the power cables above that is compatible in their country.

3. If 2 counters are installed side by side in the same entrance, would it count the same person twice?

An individual will not be counted twice even if the counter coverage overlaps an area, as our FootfallCam verification specialist will exclude any overlapping areas between both counters.

4. Is there any way we can exclude counting kids/children?

Yes, by default, FootfallCam 3D Pro2™ will exclude counting any person which is below 1.3m in height.

5. Can the counter be easily relocated after installed?

Yes, the counter can be easily relocated. You will only need a Cat5e/Cat6e cable to connect the counter to the IT router. However, the accuracy of the counter would need to be re-verified again after relocation to ensure that it could achieve the maximum accuracy as different settings would need to be applied in different environments.
