People counter | FootfallCam 3D Extend | 3D Stereoscopic Vision People Counter for High Ceiling
FootfallCam 3D Extend with 3D Stereoscopic Vision People Counter is designed to support High Ceilings and run complex video processing algorithms.
  • FootfallCam 3D Extend
  • FootfallCam 3D Extend - White
  • FootfallCam 3D Extend - Black

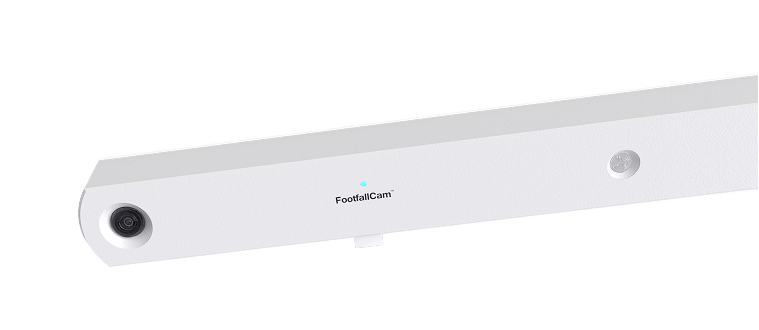

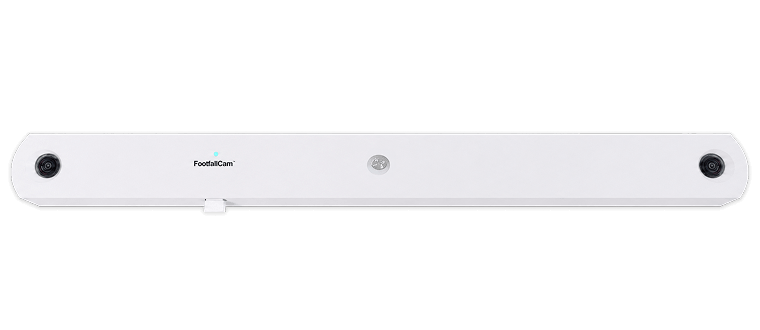

FootfallCam 3D Extend™

Specialised 3D Stereoscopic Vision People Counter for High Ceiling

  • Widest field coverage: specifically for high ceiling up to 20m
  • Stereo Vision Technology
  • Real-time Queue Monitoring/ Counting
  • Most accurate counting with video proof
  • FootfallCam in-house Manufactured: Made in the UK

About this item

FootfallCam 3D Extend™ is designed specifically for high ceilings (up to 20m) and is embedded with a powerful 1.2GHz Quadcore processor, specifically to run its complex video processing algorithm. Our GPU Processor has 20x higher processing power than our previous version powered by the latest algorithm which uses both colour and texture pattern to identify the person, producing far superior accuracy than when using colour pattern alone. FootfallCam is equipped with lenses which provide a super wide-angle view in ensuring good depth of view as compared to telephoto lenses.

Send Us Catalogs and Price List Contact Us

Specially designed for Large Venue

Data driven decision making is critical and highly demanded especially for large organisations. FootfallCam 3D Extend™ equipped with extra long distance between camera sensor and narrow degree of lens viewing to generate 3D stereoscopic vision with the widest field of counting and coverage for large venues, such as Airport, Shopping Mall, Exhibition, Museum, and more.

Supports multiple counting functions such as people counting, heatmap counting, and queue counting which users can use interchangeably or even combine multiple counting modes.

3D Extend Airport Poster Child

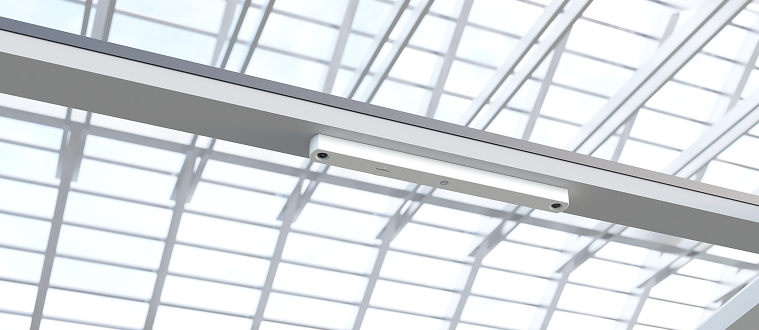

FootfallCam 3D Extend - High Ceiling

Support super high ceiling with wide coverage area

The FootfallCam 3D Extend™ can count people at heights higher than the regular counter. Even when it is installed up to 20m ceiling height, the 3D Extend can accurately count each visitor when they’re walking in and out of big entrances and exits. FootfallCam is equipped with lenses which provide a super wide-angle view in ensuring good depth of view as compared to telephoto lenses. Suitable to be installed in airport, public venue and shopping mall.

Unparalleled Accuracy of Up to 99.5%

Embedded with a powerful 1.2GHz Quadcore processor, specifically to run its complex video processing algorithm. Our GPU Processor has 20x higher processing power than our previous version powered by the latest algorithm which uses both colour and texture pattern to identify the person, producing far superior accuracy than when using colour pattern alone.

Watch it in action
FootfallCam 3D MAX - Quad Core Processor
FootfallCam 3D MAX - One-Cable Installation

Zero Downtime, Triple Built-In Operating System

Our counter has 3 built-in Operating Systems. Even in the unlikely event of a memory corruption due to electric shock, resulting in damaged disc space and counter failure, the second and third OS will be put in action to auto-rebuild the first OS. Ten thousand hours have been put into testing the software stabilities of the counters with hardware watchdog in place to reboot the system in case of OS crashes.

Easy to Install, One-Cable Installation

Simplify the installation process and keep the total cost of operation low by using Power-over-Ethernet (PoE) technology. Our people counter only requires one network cable to carry electrical power while delivering internet connection. Each device can be easily set up and configured using a smartphone.

FootfallCam 3D MAX - One-Cable Installation

Related Products

FootfallCam 3D MAX

FootfallCam 3D MAX™

FootfallCam 3D Mini

FootfallCam 3D Mini™

FootfallCam Centroid

FootfallCam Centroid™

PoE Switch

FootfallCam PoE Switch™

0.6m Drop Pole

Drop Pole for People Counter (0.6m)

3m Drop Pole

Drop Pole for People Counter (3m)

FootfallCam Analytics Manager V9

FootfallCam Analytics Manager V9™

Wall Bracket

Wall Mount Bracket for People Counter

People counter | FootfallCam 3D Extend | 3D Stereoscopic Vision People Counter for High Ceiling
FootfallCam 3D Extend with 3D Stereoscopic Vision People Counter is designed to support High Ceilings and run complex video processing algorithms.

FootfallCam 3D Extend™

Object Classification

Understand business’s audience which is essential for effective marketing and for reaching new clientele.

Multiple Lines Counting

Identify the pattern of the customer's walking direction by drawing multiple counting lines in a single counter.

Crowd Counting

Identify the pattern of the customer's walking direction by drawing multiple counting lines in a single counter.

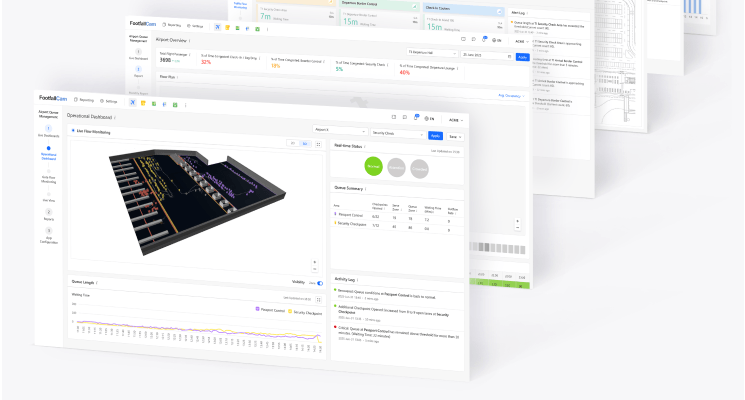

Customer View Dashboard

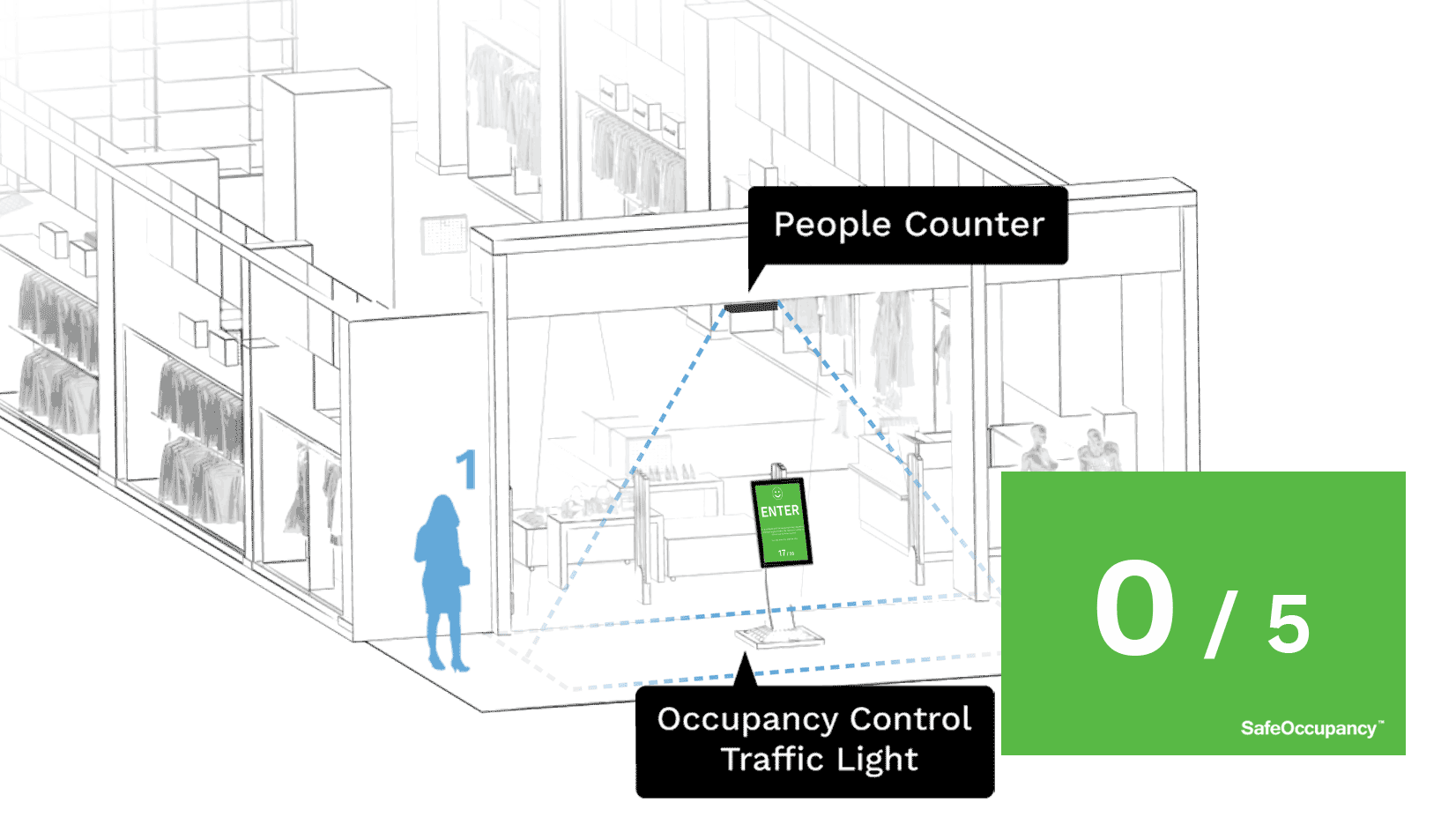

Occupancy Counting

Monitor the total number of visitors in the area in real time, and get alert when the venue is overcrowded.

Identify trends and patterns across a used space, and track the current occupancy and utilization rate within an enclosed area.

With social distancing regulations imposed to flatten the curve of COVID-19 outbreak, our people counter can help businesses can control the number of visitors in their venue at the entrance instead of employing a physical personnel.

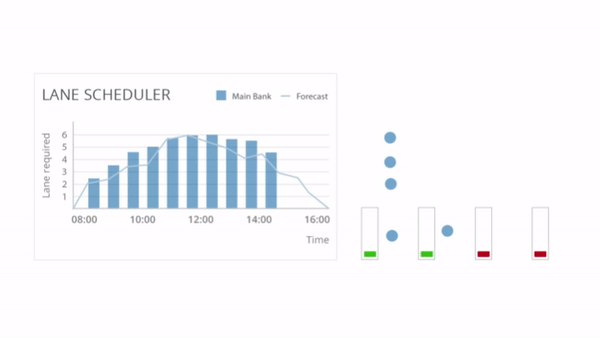

FootfallCam 3D Extend - Lane Scheduler

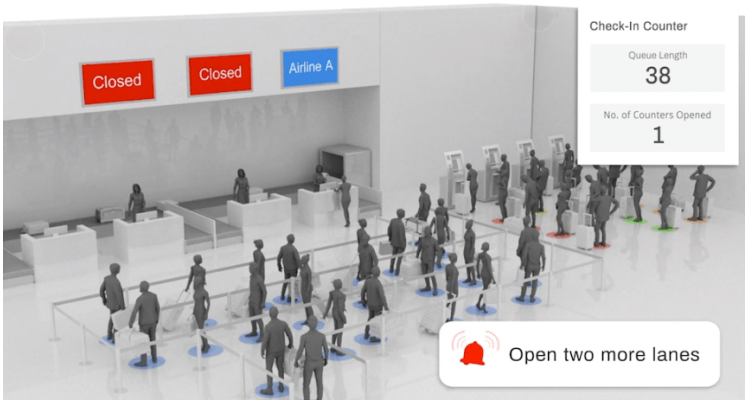

Real-time Queue Monitoring/ Queue Counting

Track the length of the queue and forecast the waiting time for visitors.

Monitor in real time of the queue length of all areas, and could assign resources to address area with excessive waiting time.

Serves as a KPI report for queue profiling.

FootfallCam 3D Extend - Area Profiling/ Area Counting

Area Profiling/ Area Counting

Enlarged overview of the airport premise to determine which area is crowded and which area is underutilised.

Optimize the estate value of key spaces with insights into the number of visitors in each area and adjust for the tenant rent rate accordingly.

Quantify the total number of visitors that enter the convention site regardless of which entrance they used

Technologies

Auto Tuning Technology

AI Image Processing

Our advanced AI processing intelligently learns the visitor’s walking path, based on a large quantity of sample size. Over time, our in-house developed AI will auto adjust the counter’s setting to suit each unique environment.

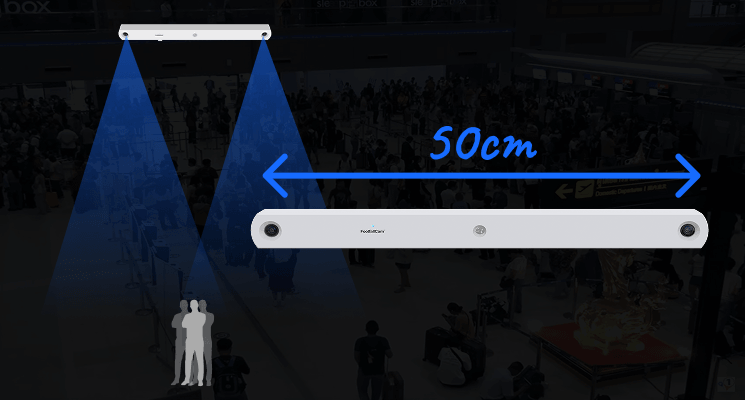

3D Stereo Vision Technology and AI counting

  • Object classification
  • Staff Exclusion
Our people counter uses active stereoscopic technology, which uses 2 lenses to produce depth perception and 3D-reconstruction in an image.
The Information captured from the two differing views (from the left lens and the right lens) will be combined and interpreted into depth data, which are inversely proportional to the differences in distance to the objects.
The depth information allows the camera to distinguish a group of people as separate objects, such as one person in front of another.
It can count accurately even when there are high numbers of visitor traffic entering and exiting the store at the same time.

People counter | FootfallCam 3D Extend | 3D Stereoscopic Vision People Counter for High Ceiling
FootfallCam 3D Extend with 3D Stereoscopic Vision People Counter is designed to support High Ceilings and run complex video processing algorithms.

FootfallCam 3D Extend™

Download Datasheet

DIMENSION

Device

550mm(W) x 49mm(D) x 33mm(H)

Packing

580mm(W) x 125mm(D) x 60mm(H)

WEIGHT

Device

0.8kg

Packing

1.41kg

CAMERA

Resolution

2 x 5MP

Illumination

Minimum 300 lux

Lens Degree

Parabolic 65°,50° and 33° (Versatile ceiling height suitability for most installation environment)

Output

5MP omni-vision 5647 camera modules

Frame Rate

15 fps (Live Stream of counting will only display 320x240 resolution to reduce bandwidth sent to database for verification purpose)

LEDS

LEDs troubleshooting for device status.

PROCESSOR

1GB, 1.2 GHz

CASING

Made by Aluminum oxide alloy.

IP RATING

IP31

Power

Power Over Ethernet

47V DC, 012A (6W)

Cabling

Cat5e, Cat6

THERMAL CONDUCTIVITY

235W / mK

STORAGE

Support up to 8 GB

IDEAL MOUNTING HEIGHT

4.5 metres - 20 metres (Based on product variations)

IDEAL ENVIRONMENTAL

Operating Environment

Temperature 10°C to 45°C, Humidity 10% - 90%

Storage Environment

Temperature -40°C to 80°C, Humidity 10% - 95%

FIRMWARE FEATURES

Auto firmware upgrade. Dual operating system, hardware watchdog, multicore processor.

TRACKING TECHNOLOGY

3D‐Spacing Mapping Video Tracking Technology and background removal on static object.

ORIGIN

Made in the UK.

POWER UNIT SPECIFICATIONS

Power Over Ethernet

Yes (IEEE802.3at)

PoE Mode

Mode B

Consumption

12.5w

AC input

110V – 240V, 50/60Hz

FIRMWARE SPECIFICATION ON COUNTER LEVEL

Interface

Http; Https

User Level

2 levels: Administrator, Standard User

Operating System

Footfall Counter OS

Ethernet

10/100 Mb Ethernet

Data Delivery

TCP/IP

Database Type

SQLite

Report format

csv, .xml, .txt

Data Backup

Yes

Firmware Feature

Dual Operating System, Hardware watchdog, Multicore processor

For more information about FootfallCam software, kindly refer to FootfallCam Analytic Manager v8 datasheet.

Product Specification

FootfallCam 3D Extend

Installation Types

FootfallCam 3D Extend - Standard Installation

Standard

Download Datasheet

Downloads

  • FootfallCam 3D Extend Datasheet PDF
    FootfallCam 3D Extend Datasheet (345 KB)
  • FootfallCam Brochure PDF
    FootfallCam Brochure (6.86 MB)
  • FootfallCam Analytics Manager v8 User Guide PDF
    FootfallCam Analytics Manager v8 User Guide (900 KB)
  • Quick Installation Guide PDF
    Quick Installation Guide (1.51 MB)
