Small Retailer
Designed for Modern Systems
Pro2 is engineered as an independent sensing device within modern data architectures, enabling integration of people-counting data into enterprise systems, data warehouses, and analytics platforms, supporting real-time processing, scalable deployment, and alignment with existing IT infrastructure.

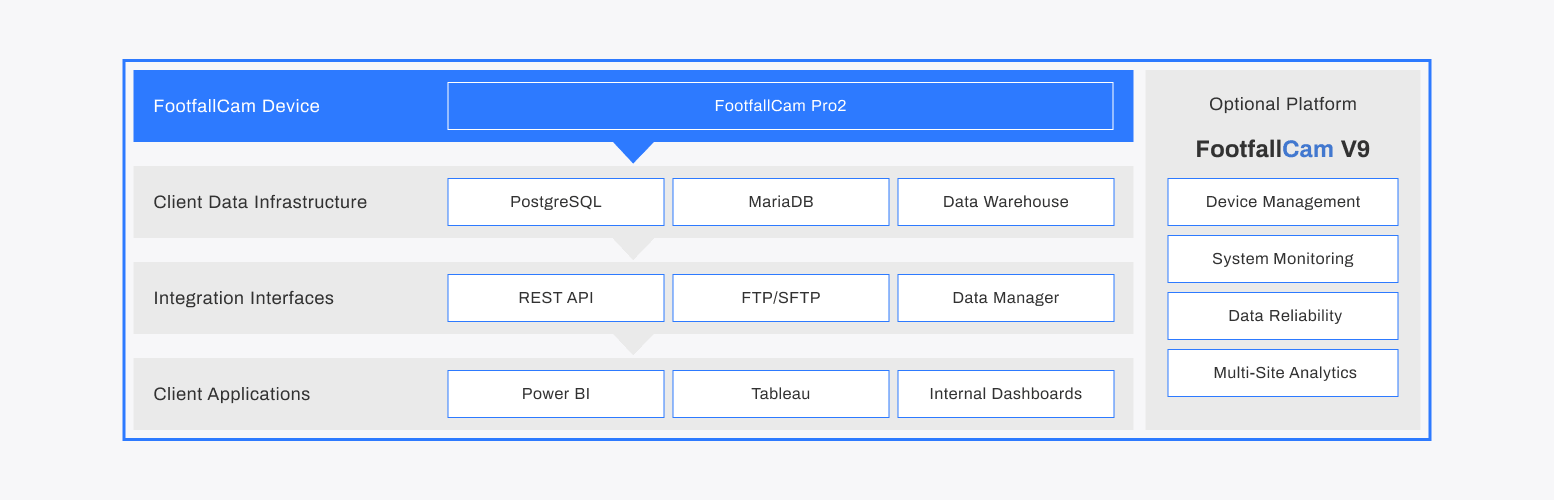

Integration Overview
Pro2 provides structured data output through standard interfaces including REST API and secure export methods. This allows system integrators and IT teams to incorporate device data directly into their databases, applications, and analytics pipelines.

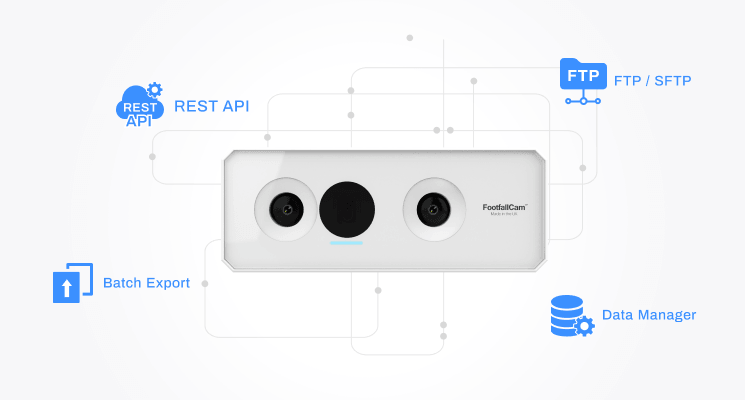

Data Output Methods
Detection events captured by Pro2 can be exported through API or scheduled file transfer. Data is typically collected into client databases where it can be processed, visualised, and incorporated into reporting platforms.
|
Method |
Description |
|
REST API |
Retrieve data programmatically through JSON endpoints |
|
FTP / SFTP |
Scheduled CSV export to client systems |
|
Batch Export |
Hourly or daily dataset delivery |
|
Data Manager |
Optional local aggregation tool |

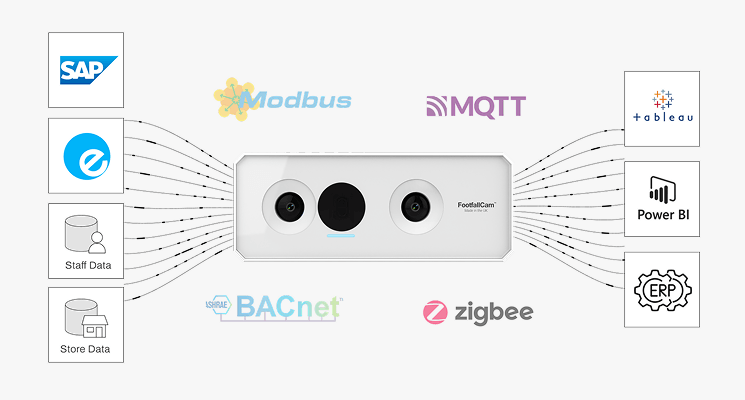

Typical Integration Scenario
System integrators commonly collect device data through API into a database environment such as PostgreSQL or MariaDB, enabling visualisation and reporting through business intelligence tools.
Optional Enterprise Platform

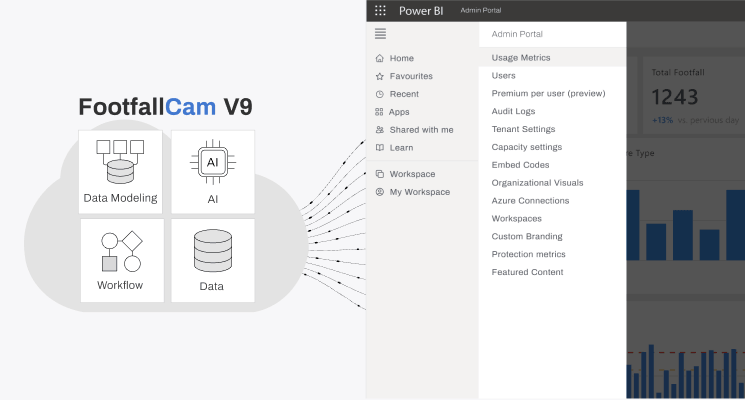

Direct Integration
Pro2 can operate independently as a data source within custom analytics environments. Data can be retrieved directly via API or exported to databases and reporting tools.

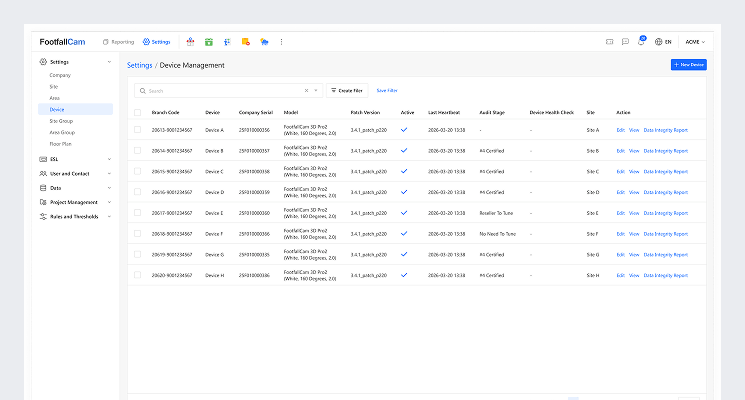

Enterprise Platform
For multi-site deployments, the optional V9 platform provides centralised device management, operational monitoring, and enterprise-scale analytics.

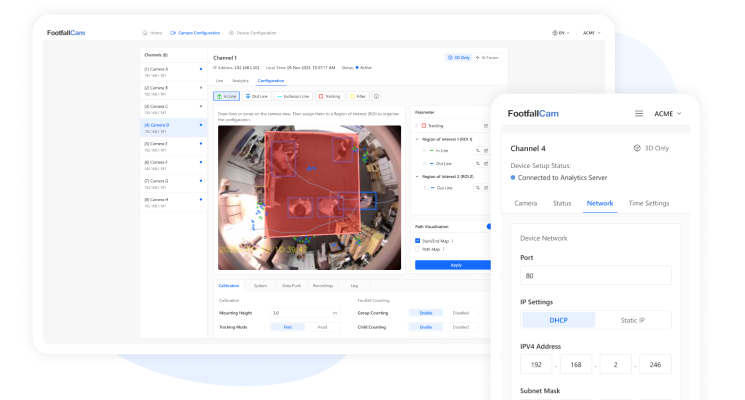

Device Configuration
Devices are configured through a web-based control panel accessible within the local network.
Configuration includes:
- Network settings
- Data export configuration
- Firmware management
- Device parameters
The system supports remote firmware updates and is designed for continuous operation with minimal maintenance, enabling stable deployments in commercial environments.
Advanced Configuration

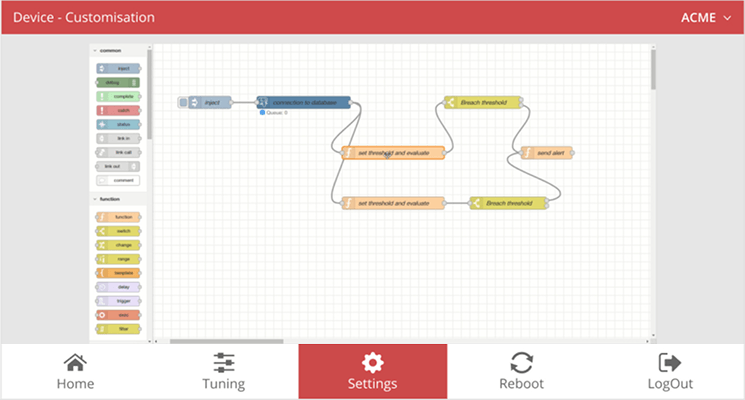

Low-Code Programmability
Low-code workspace allows each device to have embedded customised logics for your specific project requirements.
Integration Readiness
Integration Checklist
Category |
Specification |
|
REST API access |
Available |
|
Secure data export |
FTP / SFTP |
|
Structured data schema |
JSON / CSV |
|
Local configuration |
Web interface |
|
Database compatibility |
PostgreSQL / SQL |
|
Developer documentation |
Available |
|
Enterprise platform |
Optional V9 |
Designed to integrate with existing enterprise IT environments without requiring proprietary infrastructure.

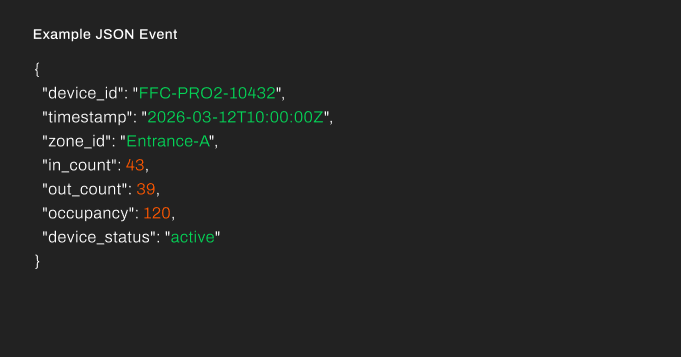

Data Schema
Pro2 exports structured event data through its REST API and export interfaces. Each record includes timestamp, device identifier, zone information, and count metrics, enabling direct ingestion into databases, analytics pipelines, or business intelligence platforms.
