Overview

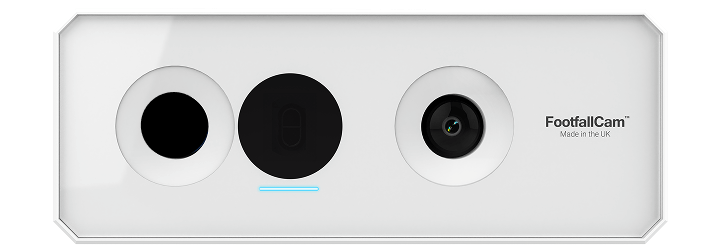

FootfallCam Pro1™
FootfallCam Pro1 is not a standalone device – it is designed exclusively to work in tandem with the 3D Pro2 system. By integrating our innovative 2D human activity sensor, retailers can extend the coverage of their existing Pro2 installations at a highly competitive price. The Pro1 sensor goes beyond simple people counting by delivering precise human activity insights, ensuring every corner of your store is monitored effectively.
Unlock 10x Coverage at the Same Cost
Extend your Pro2 setup with Pro1 for 10x coverage. Upgrade from simple door counting to full in-store analytics - at the same cost, making shopper insights more accessible than ever.

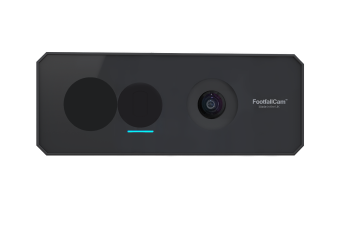

Pro1
AI-Powered People Counter
Technical Data
Download Spec Sheet|
Device Dimension (mm) |
Body: 154 (W) x 59 (D) x 40 (H) Packing: 200 (W) x 170 (D) x 50 (H) |
|
Weight |
Device: 0.4 kg Packing: 0.86 kg |
|
Sensor |
1x 5MP, 180°, 1/2.8" IMX335 CMOS Sensor |
|
Storage |
Built-in, 8 GB Storage |
|
Casing |
Made by Aluminium oxide alloy for dust resistance with 1mm tempered glass lens-covering |
|
IP Rating |
IP64 |
|
DC Power |
48~56 VDC |
|
Power Consumptions |
6W |
|
Warranty |
1-year Manufacturer Warranty |
|
Origin |
Made in the UK |
Key Features
An Integrated Extension of 3D Pro2
Pro1 is offered as part of an integrated package with the 3D Pro2. It is engineered to work in concert with Pro2, ensuring that you benefit from an expanded coverage area without the need for additional standalone devices.
Enhanced Coverage and Intelligent Analytics

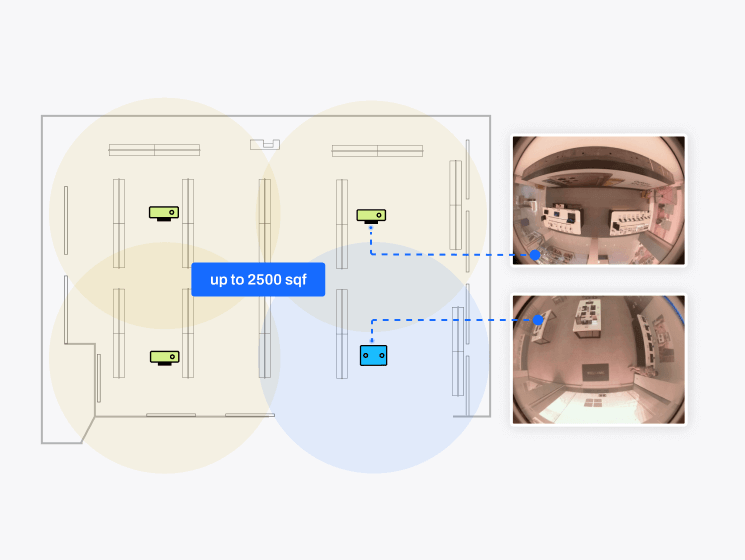

Our Pro1 sensor is a true human activity sensor that expands 3D Pro2 coverage from 500 sq. ft. to an impressive 2,500 sq. ft. With just three additional Pro1 units installed at a ceiling height of 3.5m, the entire shopper journey is captured.
Cost-Effective Expansion
Expand your monitoring capabilities while keeping costs in check. With the Pro1 sensor, a single Pro2 unit can be supplemented with multiple Pro1 sensors to blanket larger areas, offering an affordable solution for expansive retail spaces.
How it Works

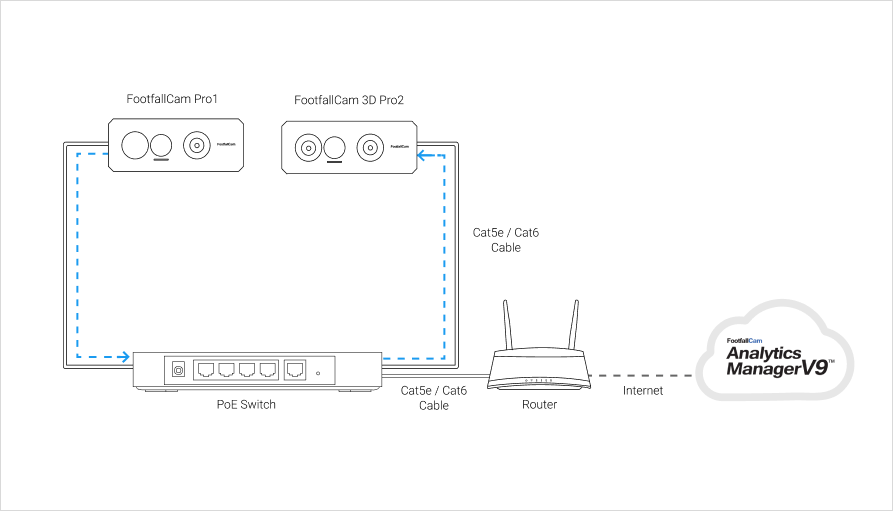

Network-Friendly Data Transmission
Unlike conventional CCTV cameras that can transmit large video streams, FootfallCam Pro1 only transmits minimal counting data.
- Specialised PoE Switch: Pro1 communicates internally with Pro2 using a dedicated PoE switch.
- Low Bandwidth Usage: Only a few kilobytes of data are sent to the cloud, ensuring that your LAN remains unclogged and operating efficiently.
