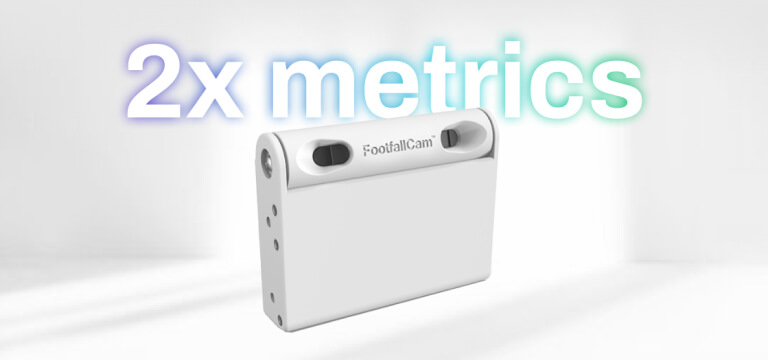

FootfallCam 3D Mini™
Cost Effective Single Door People Counter
- Anonymous People Counting using Time-of-Flight (ToF)
- High Accuracy Even in Complete Darkness
- Quick and Easy Deployment

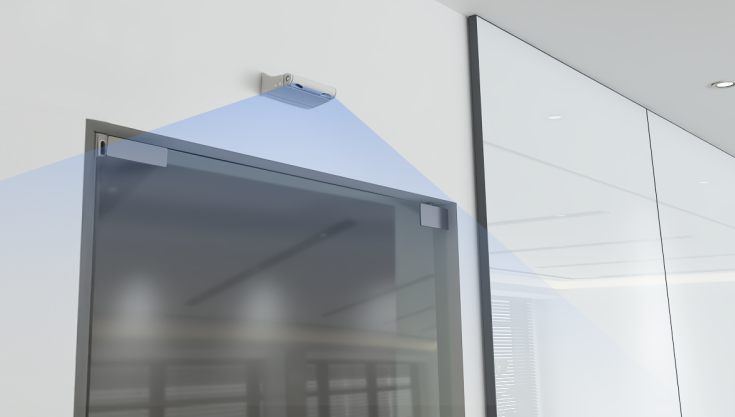

- Can be Mounted Vertically or Horizontally
- Specifically Designed for Single Door Counting
- FootfallCam In-House Manufactured Product: Made in the UK
About this item

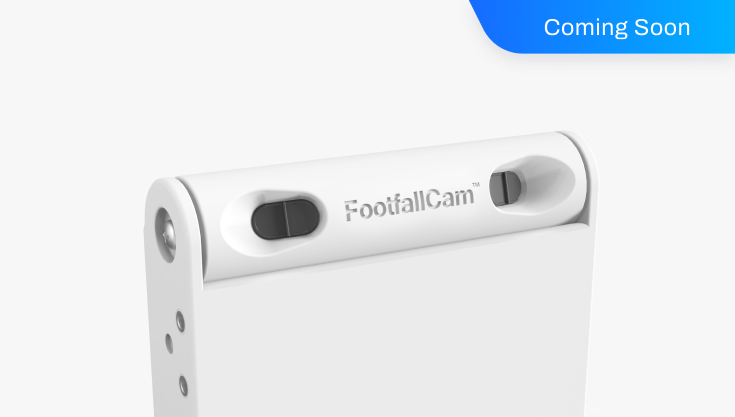

FootfallCam 3D Mini™ is simply designed as a cost effective single door people counter which can be easily deployed without worrying about cabling or lighting. Integrating seamlessly with FootfallCam 3D Max™, it can be mounted on any wall or ceiling for vertical/horizontal counting.
Accurate, Cost Effective People Counting System
Specifically designed for single door entrance, FootfallCam 3D Mini™ is a low cost people counting system with high counting accuracy. It is suitable to be deployed at meeting rooms and washrooms, to count the number of people utilising the facilities.

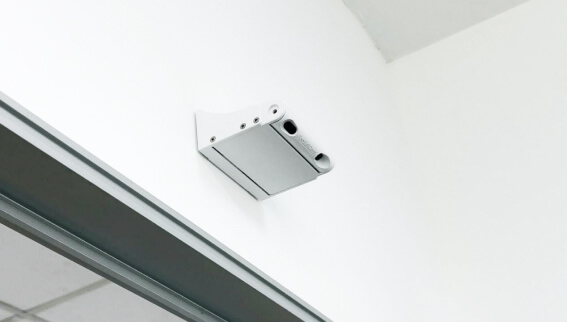

Specifically Designed for Single Doors
FootfallCam 3D Mini™ is designed with simplicity and cost efficiency in mind. Using the latest in ToF technology, we have engineered a people counter that can perform the same accurate and reliable people counting in a compact form factor that is 20% smaller than our regular devices. The 3D Mini’s coverage is only engineered for single entry doorways, which makes it ideal for meeting rooms, washrooms, store rooms, etc.

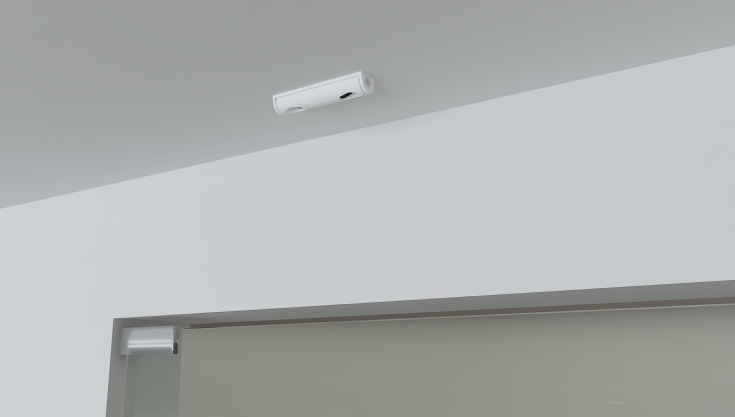

Suitable for Low Ceilings, As Low As 1.9m
The FootfallCam 3D Mini™ can count people at heights lower than the regular counter. Even when it is installed at 1.9m ceiling height, the 3D Mini can accurately count each visitor when they’re walking in and out of single door entrances and exits. The sensor can also be installed to up to 3.0m ceiling height, which is the standard for single entry doorways.
Works Even in Complete Darkness
By using Time-of-Flight technology, we can continuously count visitors without being influenced by changing lighting conditions. This means that you can install people counters in any environment, even in complete darkness.
Full Privacy Protection
Instead of using cameras, our GDPR-exempted sensors are designed to count highly accurate visitor analytics without capturing any video image. By analysing the counter’s depth view, the sensor can count people while protecting the user’s privacy.
Related Products
FootfallCam Smell Sense™
FootfallCam DeskTag™
FootfallCam RoomTag™

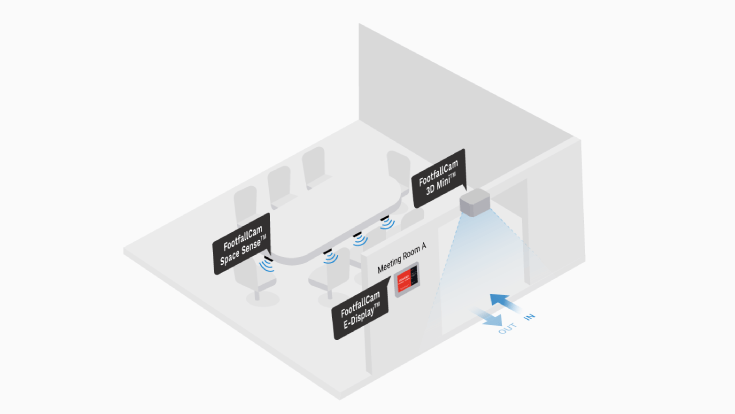

Meeting Room
Inefficiencies in a workplace can be caused by countless different factors, where one of the leading causes is time-spent waiting for a resource to become available. Having access to all of this information in real-time enables better-informed decisions throughout the day.
- Visualise the traffic of employees by monitoring the occupancy
- Optimise employee workflow by sharing real-time occupancy with staff
- Identify the peak times for different areas throughout the day and make informed decisions on building development and staff schedules

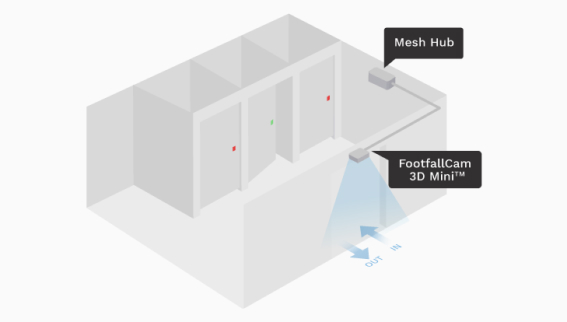

Smart Washroom
With FootfallCam 3D Mini™, facility management can have a better insight by measuring the washroom usage while maintaining user’s privacy. Use cases include:
- Replace scheduled maintenance to more targeted demand-based servicing
- Better customer experience
- Predictive analysis using historical data for future planning
- Utilisation insights for facility managers
Technologies
Anonymous Counting using Time-of-Flight (ToF)
Time-of-Flight technology works by emitting an invisible infrared light, then tracks the time it takes to bounce from the subject to the sensor, which enables us to measure precise depth-mapping without requiring any video footage. As a result, the data collected are anonymous at source.

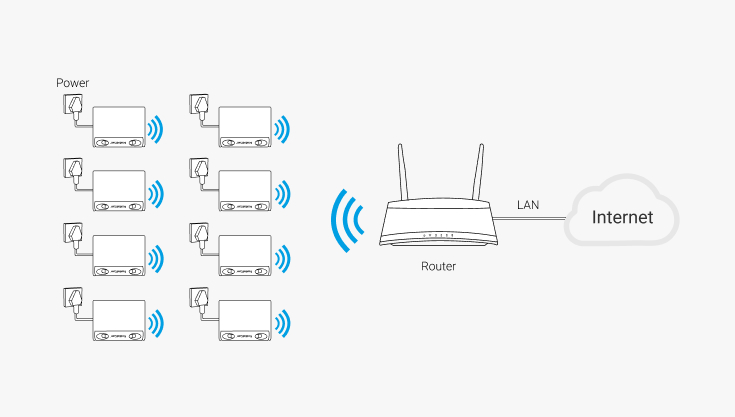

FootfallCam Wireless Mesh™
Instead of connecting PoE cable to each FootfallCam 3D Mini™, multiple devices can be connected to a central FootfallCam 3D MAX™, which will act as the master device to send all counting data to the server. Hence, the wireless mesh system simplifies deployment and saves cost on cabling. They are also an extremely flexible network architecture as it allows management to remove or add more devices to the system.
FootfallCam 3D Mini™
DIMENSION |
|
|---|---|
Device |
94mm(W) x 61mm(D) x 45mm(H) |
Packing |
120mm(W) x 85mm(D) x 80mm(H) |
WEIGHT |
|
|---|---|
Device |
0.270kg |
Packing |
1.02kg |
SENSOR |
|
|---|---|
Sensor Type |
Time-of-Flight (ToF) Sensor |
Field-of-View (FoV) |
27° |
Emitter |
Class 1 940nm invisible laser |
Light Source |
Class 1 940nm VCSEL |
Indicators |
Single Blue LED |
CASING |
|
|---|---|
Made by ASA Plastic |
|
IP RATING |
|
|---|---|
IP31 |
|
POWER |
|
|---|---|
Cabling |
12V DC wiring |
THERMAL CONDUCTIVITY |
|
|---|---|
235W / mK |
|
STORAGE |
|
|---|---|
|
Up to 1000 event timestamps in Flash memory |
|
IDEAL MOUNTING HEIGHT |
|
|---|---|
1.9 metres–3 metres |
|
IDEAL ENVIRONMENTAL |
|
|---|---|
Operating Environment |
Temperature 10°C to 45°C, Humidity 10% - 90% |
Storage Environment |
Temperature -40°C to 80°C, Humidity 10% - 95% |
TRACKING TECHNOLOGY |
|
|---|---|
Depth-sensing Time of Flight Technology. Collects anonymous depth image data. |
FIRMWARE FEATURES |
|
|---|---|
Manual / Auto Software upgrade |
ORIGIN |
|
|---|---|
Made in the UK. |
POWER UNIT SPECIFICATIONS |
|
|---|---|
Consumption |
200mW |
Input Voltage |
7-12 VDC |
OPERATIONAL |
|
|---|---|
Communications |
868/915 MHz ISM band 2-way wireless |
Wireless Range |
50m Line-of-sight, 20-30m noisy office environment |
Topology |
Star Network |
Wireless Encryption |
AES-128 |
Countries and Region |
Mid-East: Turkey, United Arab Emirates, Qatar, Iran, Iraq, Morocco, Egypt, Jordan, Kuwait, Saudi Arabia, Tunisia, Palestine, Pakistan
|
Product Specification
Installation Types
Ceiling Mount
Downloads
FAQs
More FAQs1. What is the wireless coverage range from the FootfallCam 3D Mini™ to the FootfallCam 3D MAX™?
The FootfallCam 3D Mini™ can connect up to 50m with a clear line-of-sight; and it can cover 20-30m in a noisy office environment.
2. Does the 3D Mini require a wall bracket to install it from the wall?
The FootfallCam 3D Mini™ can be mounted either on a wall or a ceiling, so it does not require any wall brackets.
3. Can the 3D Mini display the total occupancy of the room onto a display?
It will work in the same way as the 3D Max, whereby it will upload the data to the software in real-time, and then update the live occupancy display.
4. For 5 min of footfall count, how much data is generated by the FootfallCam 3D Mini™?
The average data transfer rate for each FootfallCam 3D Mini™ (to the FootfallCam 3D MAX™) is 5 kilobytes per hour, given that there is a pre-defined a sample size of 20 requests per hour.
5. Does the same software support multiple/different counters?
Our software will support multiple and different counters and the counts from all counters can be combined in our web-based reporting software. You can combine the counts of the 2 counters and view the total traffic IN and OUT or you can view the total IN and OUT individually.
6. How does Time-of-Flight work?
The time-of-flight principle is based on measuring the time it takes for a wave to travel from a source (a time-of-flight sensor) to an object and back. Based on that data – as well as some knowledge of maths and physics (such as wave propagation) – you can establish the distance of that object from the source.
7. What are the advantages and disadvantages of using Time-of-Flight counting technology?
FootfallCam 3D Mini is using Time-of-Flight counting technology and it’s suitable for indoor environments which are not subjected to strong sunlight. It comes with the following pros and cons:
- Pros:
- Can work in complete darkness without any further assistance from IR LED.
- Requires less CPU processing power since it does not have AI Video Analytics, thus this can reduce the cost of the device.
- Cons:
- Strong Sunlight may flood the 850-950nm light measurement spectrum of the ToF sensor;
- Black hair or black clothing may not produce a good depth map for optimal detection; e.g.:
