Time-of-flight Utilisation Detector

FootfallCam Depth Sense™

  • Real-time Data Processing
  • Monitor the bin fill-level of a Waste Bin, and trigger cleaning task alerts
  • 4+ years battery life, advanced battery saving design for lower power consumption
  • Wireless, no cabling required
  • Easy to install, integrate and maintain
  • Water and dust resistance
  • FootfallCam In-House Manufactured Product: Made in the UK

About this item

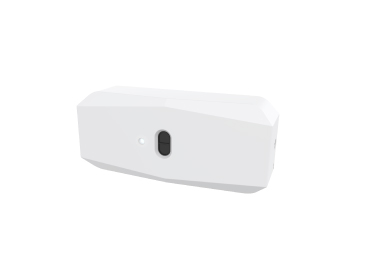

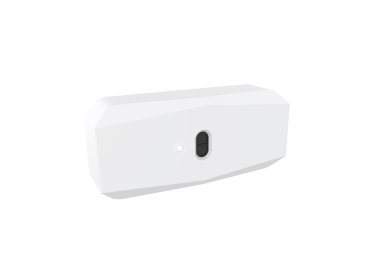

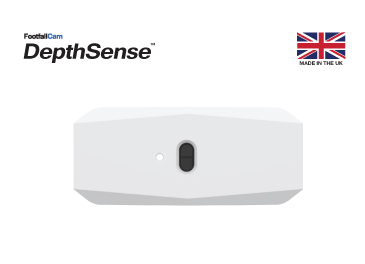

FootfallCam Depth Sense™ is an electronic device which is mounted to the inner lid of bins to monitor the bin fill-level in real-time. Each device is connected to the FootfallCam people counter receivers through Radio Frequency(RF) wireless network. The data received is transmitted to the FootfallCam Analytic Manager V9™ software for usage computation. The analytic results are displayed on a dashboard allowing users to monitor bin fill-level remotely. The receiver can communicate up to 50 FootfallCam Depth Sense™ within a 20 metres unobstructed radius.

FootfallCam Depth Sense - Measure Bin Fill-Level in Real-time

Measure Bin Fill-Level in Real-time

FootfallCam Depth Sense™ use Time-of-Flight (ToF) principle to detect the fill-level of each waste container. This allows staff to perform remote monitoring and trigger task alerts whenever the bin container is full or reaches the threshold, improving labour efficiency while ensuring the SLA to keep premises clean.

Cost Effective Wireless Sensor

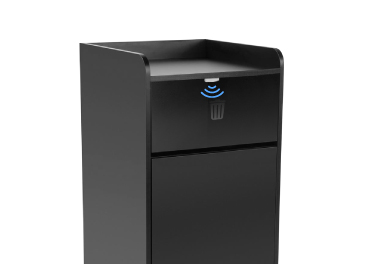

No cabling is required. The Depth Sense can be mount under a lid of bin by any facility staff using secure, damage-free peel-and-stick adhesive strips, no technical skills required. The sensor is specifically designed to be used in the enviroment with highest quality and reliable components for power saving optimization, and thus reducing the maintenance cost of having to change the battery frequently.

FootfallCam Depth Sense - Cost Effective Wireless Sensor

Depth Sense Features

Unobstructive and sleek design for industrial use with Time-of-Flight (ToF) technology. Cost effective, and specially designed with easy integration and installation. Extreme lightweight design, can be easily applied onto any surface and occasions to collect anonymous occupancy data.

FootfallCam Depth Sense - Peel And Stick


3M Command Strip

FootfallCam Depth Sense - Low Power Consumption

Low Power Consumption

4+ years battery life

FootfallCam Depth Sense - Wireless Sensor

Wireless Sensor

RF up to 20m radius

FootfallCam Depth Sense - Lightweight


150 gram

FootfallCam Depth Sense - Splash & Dust Resistance

Splash & Dust Resistance

Resistance of moisture environments


FootfallCam Depth Sense - Restaurants


FootfallCam Depth Sense - Office


FootfallCam Depth Sense - Washrooms


Product Specification

Technical Details

Sensor Type

Time-of-Flight (ToF) range sensor

Detection Range

10 – 200 cm


Texas Instrument CC1310

Casing Colour


Casing Material

ASA (Acrylonitrile Styrene Acrylate)

Operating Temperature

0 to 40 °C

Battery Life Time

Up to 5 years (Battery life dependent on the frequency of updates)


2 x CR2450 (Replaceable)



Radio Frequency

868 / 915 MHz
