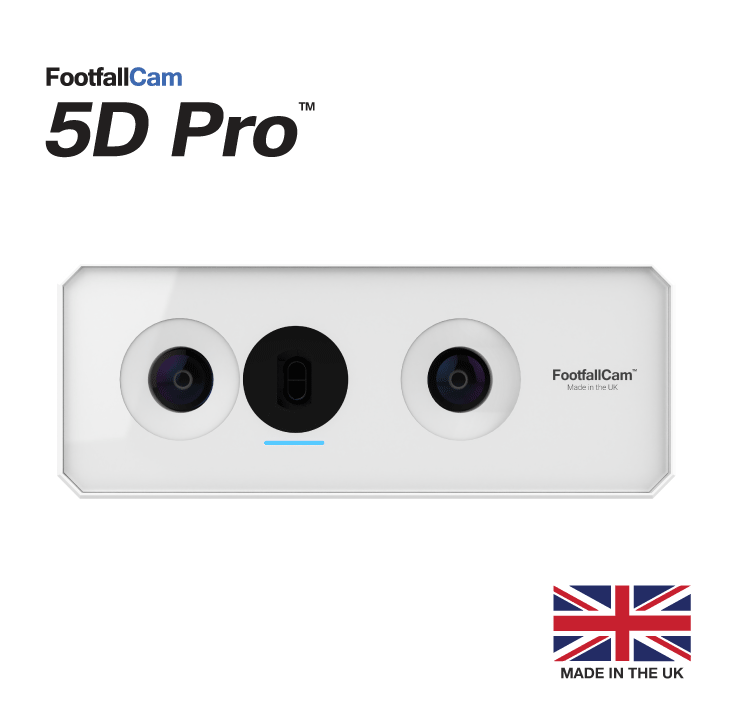

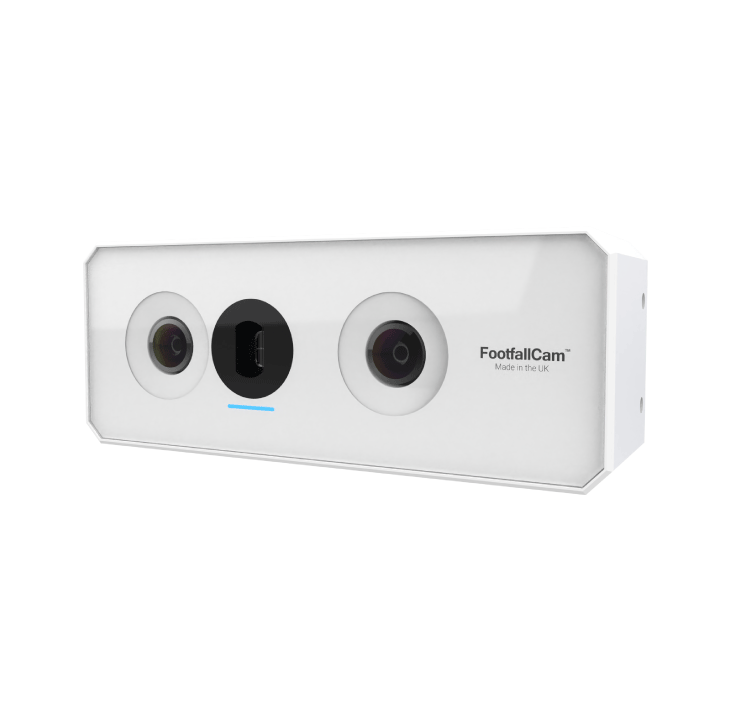

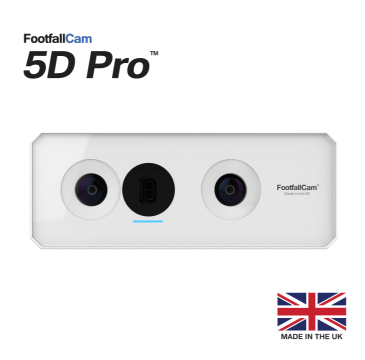

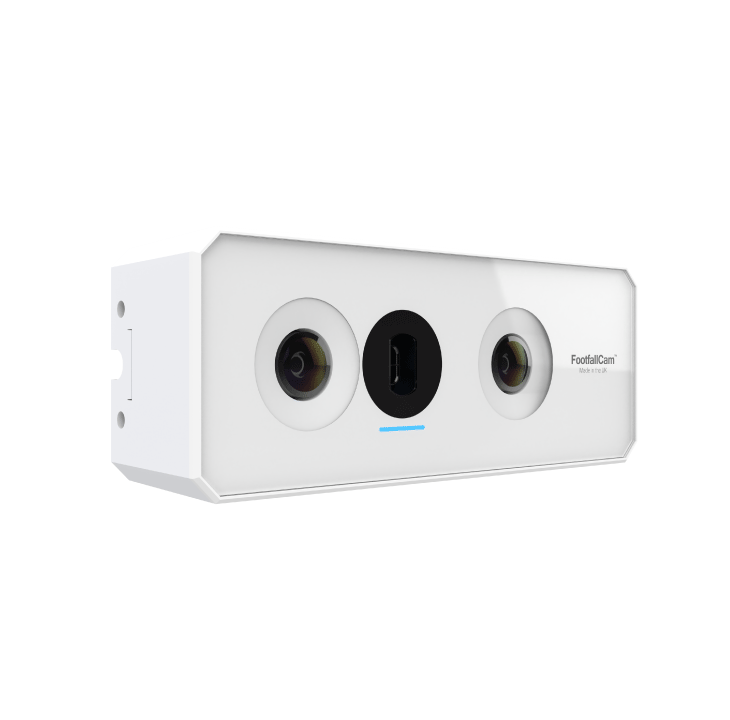

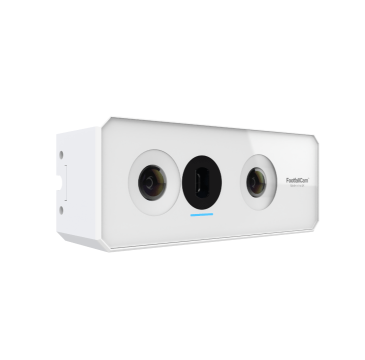

FootfallCam 5D Pro™

5 Dimensional People Counting Technology

  • AI Powered 3D Stereo Vision and Time-of-Flight People Counting
  • Unparalleled Accuracy of Up to 99.5%
  • Superior Processing Power - Improved 3D Counting Accuracy
  • Low-light / Night mode counting
  • Splash-Proof Casing
  • FootfallCam In-House Manufactured Product: Made in the UK

About this item

FootfallCam 5D Pro™ is specially designed to support low ceiling height (as low as 2.1m) counting. Embedded with a powerful 1.2GHz Quadcore processor, it is packed with feature upgrades while maintaining performances of its predecessors. Specifically designed to run complex video processing algorithms, the GPU runs our AI-based algorithms which utilises depth, colour and texture pattern to identify a person, producing superior accuracy compared to using colour pattern alone. Delivered in splash proof case, the overall form factor is more compact and inconspicuous than ever.

Highest Accuracy : 5-Dimensional People Counting Technology

Combining 3D stereoscopic image processing and Artificial Intelligence (AI) video analytics together with Time-of-Flight sensing technology, FootfallCam 5D Pro™ People Counter is optimised to achieve consistent and high accuracy up to 99.5%, even in environmentally challenging conditions, including strong shadow, inward swinging door, inconsistent lighting conditions and etc. by eliminating the limitations of those technologies.

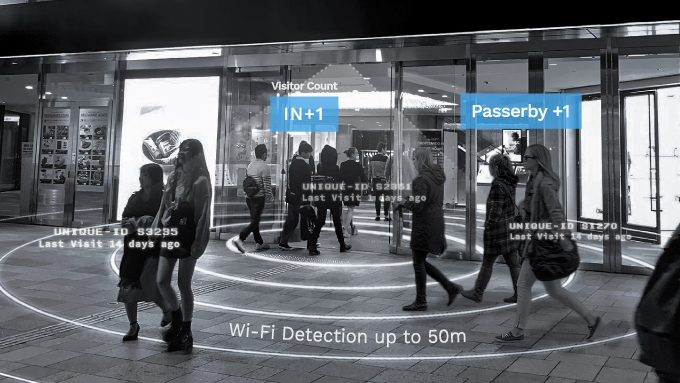

Wi-Fi Counting

With the Wi-Fi capturing technology, the people counter is able to detect the number of smart devices within the range of Wi-Fi detection. With this, the people counter is capable of providing in depth Wi-Fi analytics and business metrics such as zone analytics, dwell time, passerbys, turn in rate, traffic flow, returning customers and cross shopping.

Know more
FootfallCam 5D Pro - Wi-Fi Analytics
FootfallCam 5D Pro - Staff Exclusion

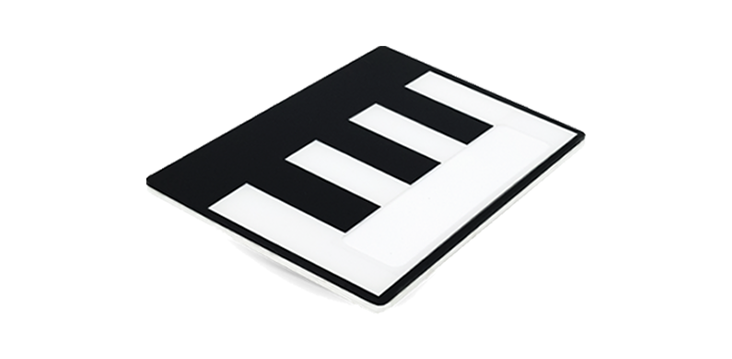

Staff Exclusion

Combining Footfallcam 5D Pro™ and 5 different staff exclusion methods, the store staff can be identified and excluded from the traffic counting to provide a more realistic and accurate people counting data.

Watch video

Object Classification

Utilising the 3D depth map captured by dual lens, it allows the FootfallCam 3D Pro2™ people counter to determine the height and size of the moving objects, and distinguish the objects from the people using AI algorithms. This helps to exclude the object, such as wheelchairs, trolleys, carts and strollers from the counting.

Watch video
FootfallCam 5D Pro - Object Classification Icon

One Device, Multiple Applications

Offers deployment flexibility for both short term and long term use. Supports multiple counting functions in a single device, in which users can use interchangeably, or relocate to use for other functions.

FootfallCam 5D Pro - In Out Coutning

In Out Counting

FootfallCam 5D Pro - Multiple Counting

Multiple Counting Lines

FootfallCam 5D Pro - Queue Counting

Queue Counting

FootfallCam 5D Pro - Heatmap

Heatmap

Optimised for All Environments

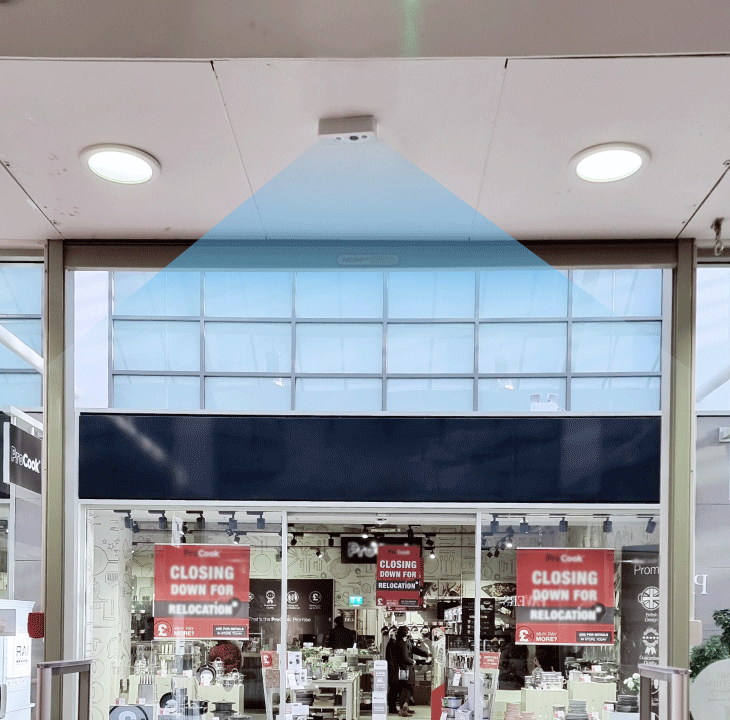

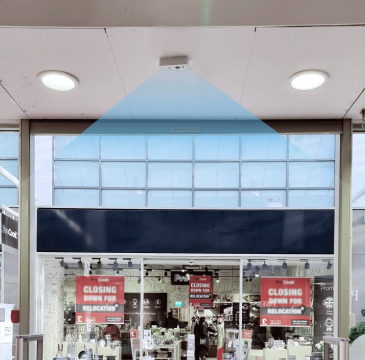

FootfallCam 5D Pro™ is specially designed to count accurately with highest precision, even under all extreme conditions. It supports most of the ceiling heights, as low as 2.1m to 4.5m

FootfallCam 5D Pro - Heat dissipation

Superior Heat Dissipation

Enclosed in an aluminium unibody casing, acting as a giant heatsink for heat dissipation, prolong the lifespan of electronic components.

FootfallCam 5D Pro - Widest coverage

Widest Coverage

Equipped with 160 degree dual fisheye lens, has a wider coverage area, reduce the total number of counters required.

FootfallCam 5D Pro - Low Light

Low Light

The built-in sensor (Time-of-Flight) further improves accuracy in low-light, even in complete darkness.

FootfallCam 5D Pro - Water leakage proof

Water Leakage-Proof

Enclosed in splash proof casing to reduce the counter failure rate due to the common issues like water leakage on the ceiling.

FootfallCam 5D Pro - Low Ceiling

Improved Mounting Height Range

One lens fits all heights, caters for different types of stores with varying ceiling heights, as low as 2.1m to 4.5m.


Product Specification

Technical Details

Tracking Technology

3D-Spacing Mapping Video Tracking Technology and background removal on static objects.

Depth-sensing Time of Flight Technology. Collects anonymous depth image data

Camera Lens Spec

2x5MP

Depth Field of View

160°

Illumination

Minimum 1 lux

Ideal Mounting Height

2.1 metres - 4.5 metres

Casing

Aluminum oxide alloy

Power Supply

Power Over Ethernet

Power Consumption

6W

Wireless Connectivity

Supports a network of up to 250 IoT devices via RF
