FootfallCam 3D Max™

Flagship 3D Stereoscopic People Counter

  • Best Selling People Counter in 2019
  • Unparalleled Accuracy of Up to 99.5%
  • Widest Coverage Area: Reduce the Number of Devices Required by 40%
  • Expected Lifespan of 25 Years: Superior Cooling with Aluminium Unibody Casing
  • Exclude Staffs from Being Counted: Staff Exclusion Tag
  • FootfallCam In-House Manufactured Product: Made in the UK

About this item

FootfallCam 3D Max™ is designed as a powerful all-in-one counter that enables you to count visitors in any environment, whether that is in retail stores, shopping malls, museums, libraries, smart office buildings, fast food restaurants, exhibitions, or airports. Our counters are designed with attention to detail to provide the most accurate, reliable, and cost-effective sensor that the market has to offer. Furthermore, only the top-grade materials are used to offer you a high quality and long-lasting system.


Features

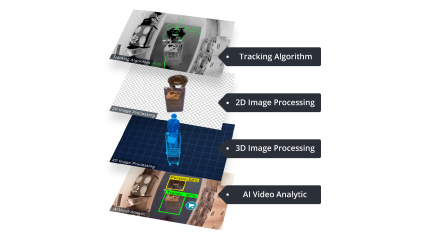

FootfallCam 3D Max - Quad Core Processor

Unparalleled Accuracy of Up to 99.5%

Embedded with a powerful 1.2GHz quad-core processor and coupled with advanced AI algorithm technology, our FootfallCam 3D Max™ achieves up to 99.5% accuracy in any environment. Once installed, each people counting device will be provided with a video proof of the counting accuracy.

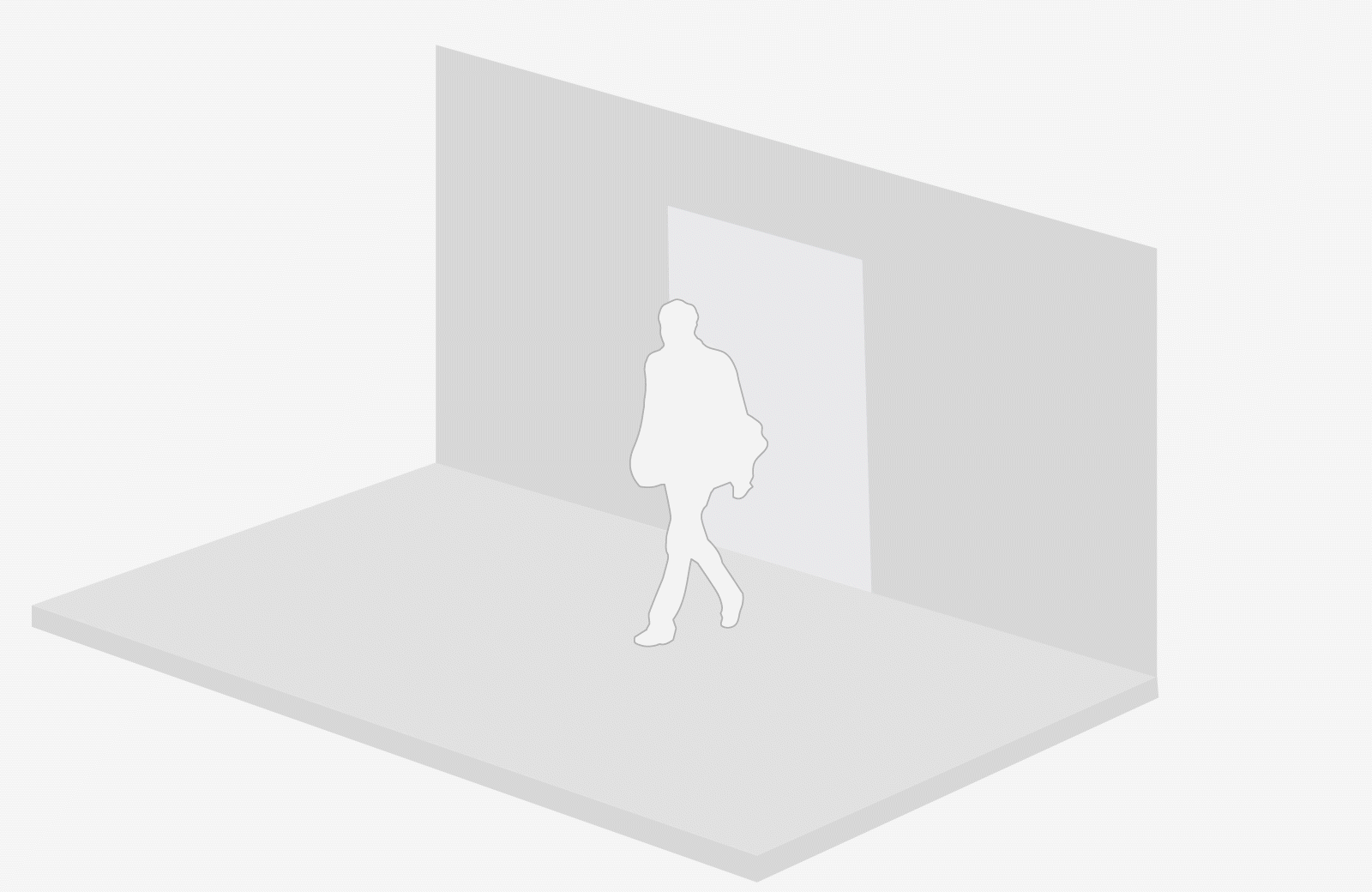

Widest Coverage Area

Being one of the few manufacturer’s using wide-angle lenses, FootfallCam people counters can provide the widest coverage area for people counting in the industry, which significantly reduces the number of counters required to cover the same area by 40%, in comparison to other people counters in the market, hence cutting down on the total cost required.

FootfallCam 3D Max - Coverage Area

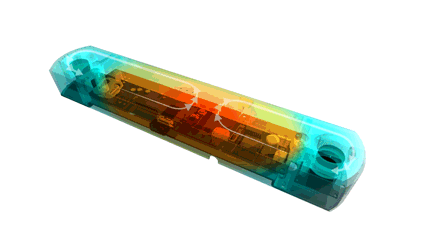

FootfallCam 3D Max - Heat Cooling

Expected Lifespan of 25 Years

FootfallCam 3D Max™ is encased in an aluminum unibody design, which acts as a heatsink, ensuring optimal heat dissipation to maintain low operational temperature without any worry about the hardware overheating. As a result the lifespan of electrical components is prolonged, with our people counter achieving a mean time to failure of 25 years.

Staff Exclusion Function

Improve the accuracy of the visitor counting data by excluding staff from being counted. By using an advanced image processing algorithm to detect FootfallCam’s unique pattern on the staff exclusion tag, FootfallCam 3D Max™ is able to exclude staff without requiring any additional input.

Specifications

Download Datasheet
FootfallCam 3D Max

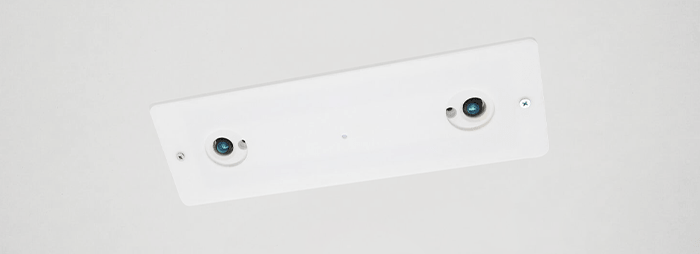

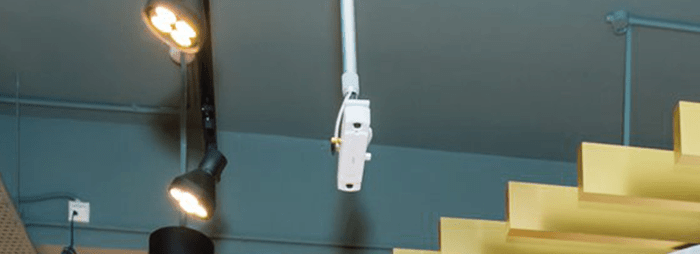

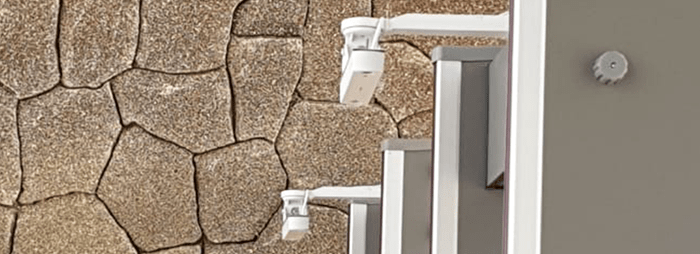

Installation Types

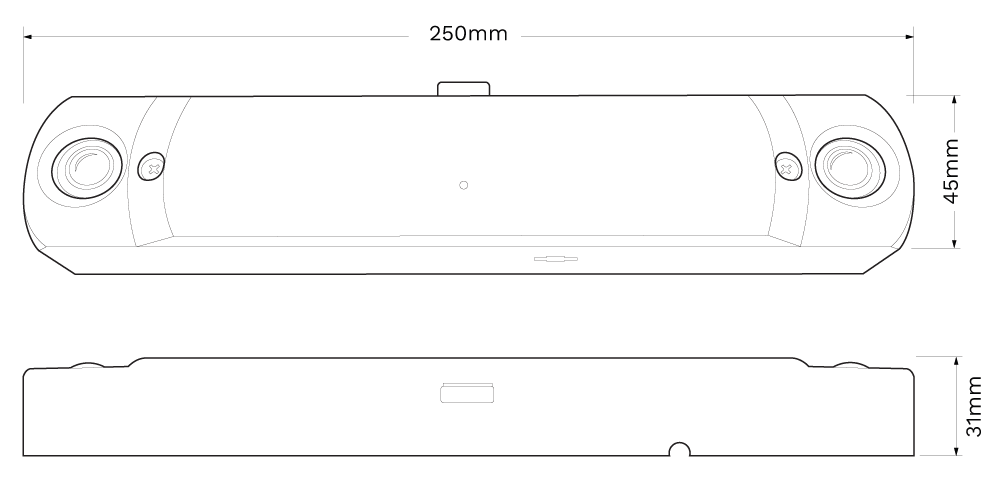

Dimension

Device

250mm(W) x 45mm(D) x 31mm(H)

Packing

255mm(W) x 210mm(D) x 55mm(H)

Weight

Device

0.6kg

Packing

1.02kg

Camera

Camera Lens Type

160°

Lens Resolution

2 x 5MP

Illumination

Minimum 300 lux

Frame Rate

15 fps (Live stream will only display 320 x 420 resolution to reduce bandwidth for FootfallCam verification purpose)

IDEAL MOUNTING HEIGHT

2.5m - 4.5m

CASING

Aluminum oxide alloy enclosure

Power

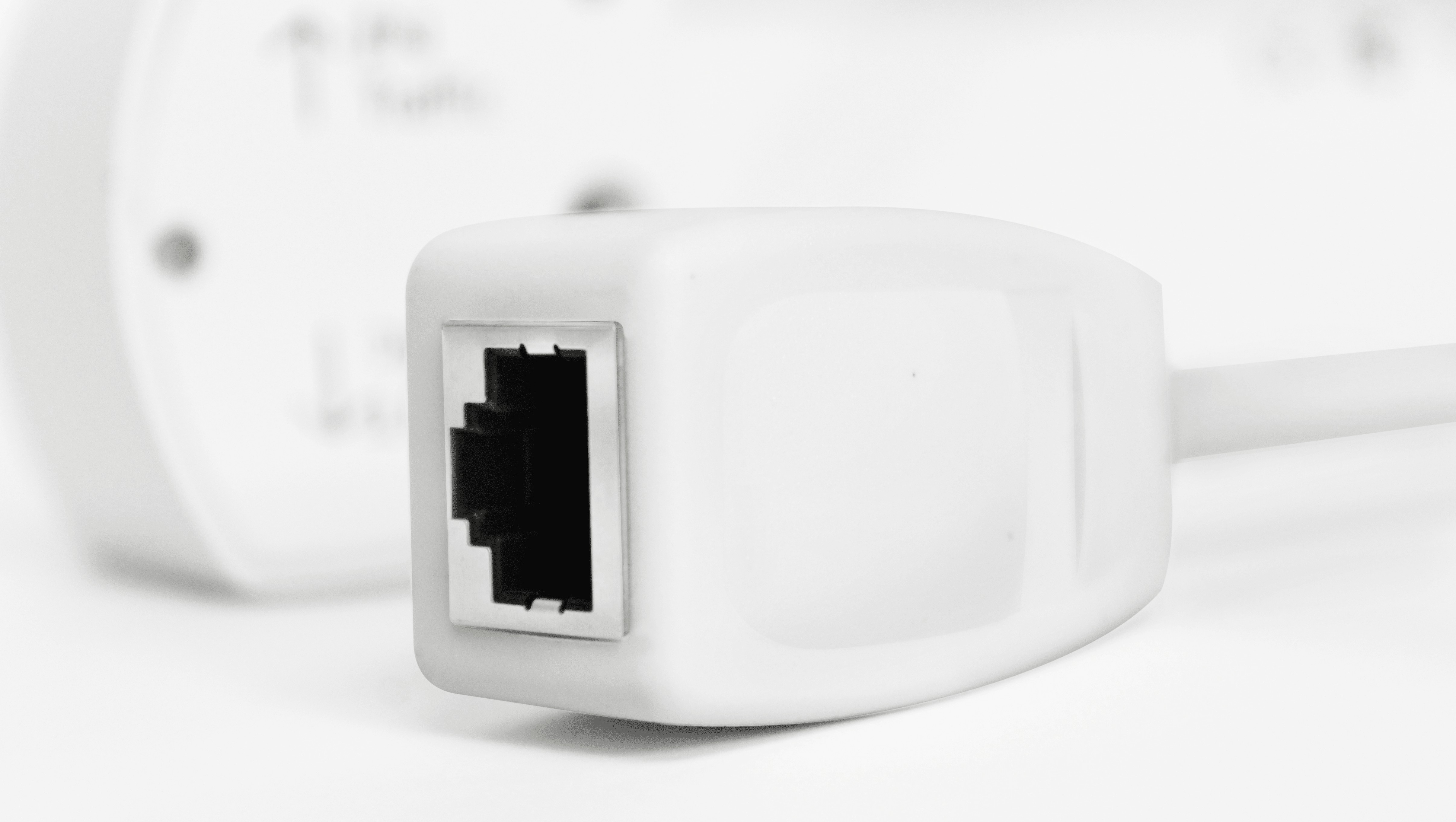

Power Over Ethernet

47V DC, 012A (6W)

Cabling

Cat5, Cat6

Leds

LED troubleshooting for device status

IDEAL ENVIRONMENTAL

Operating Environment

Temperature 10°C to 45°C, Humidity 10% - 90%

Storage Environment

Temperature -40°C to 80°C, Humidity 10% - 95%

TRACKING TECHNOLOGY

3D-Spacing Mapping Video Tracking Technology and background removal on static object

Download Datasheet

People Counting Solution

With high accuracy video counting, FootfallCam 3D Max™ is designed to count visitor ins and outs in various industries.

Other Solutions Available

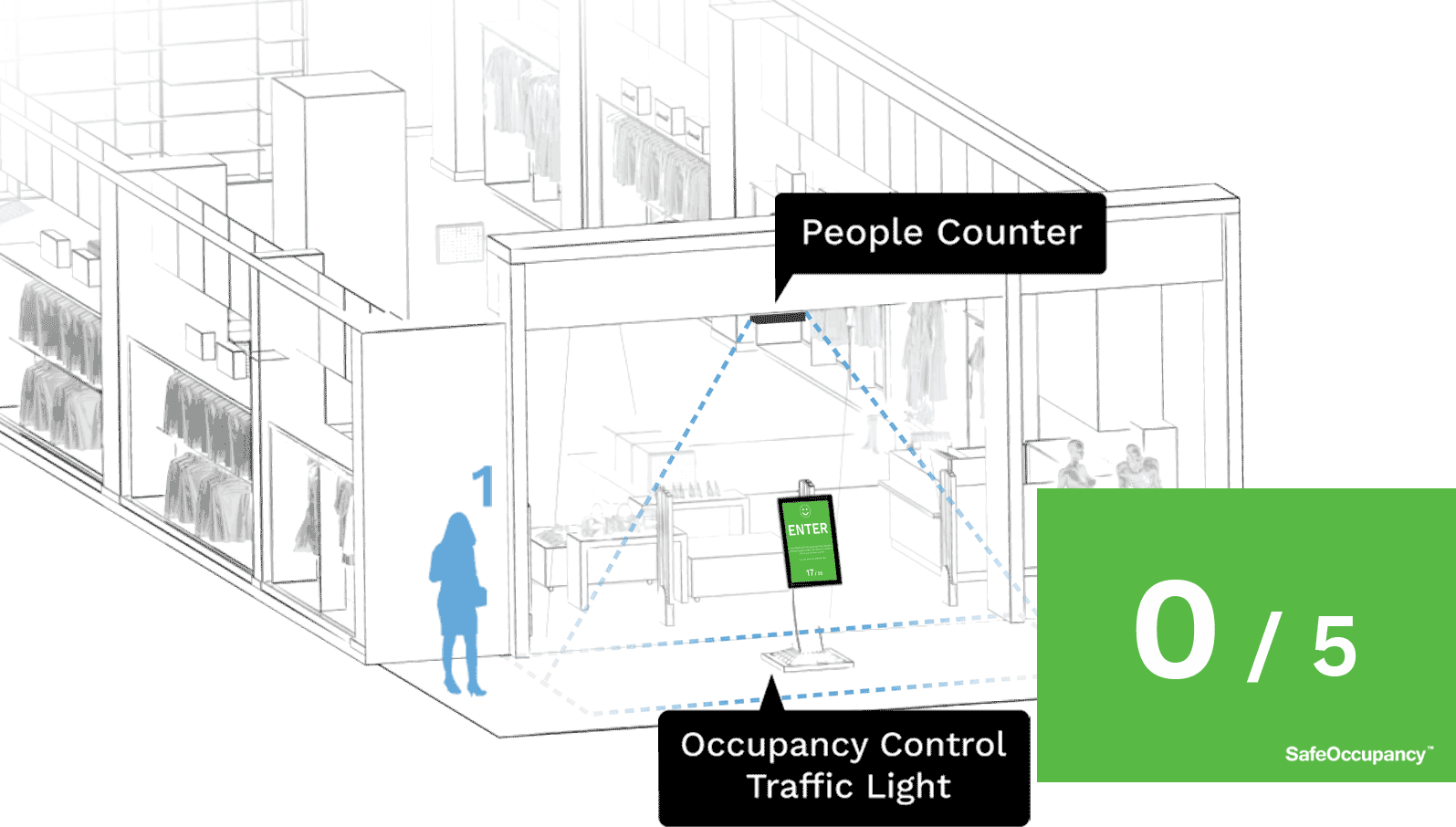

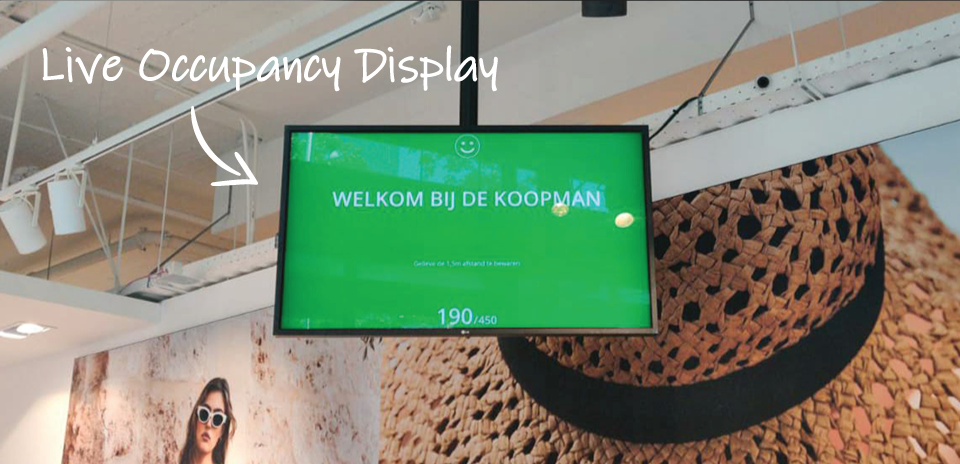

FootfallCam 3D Max - Real Time Occupancy Tracking

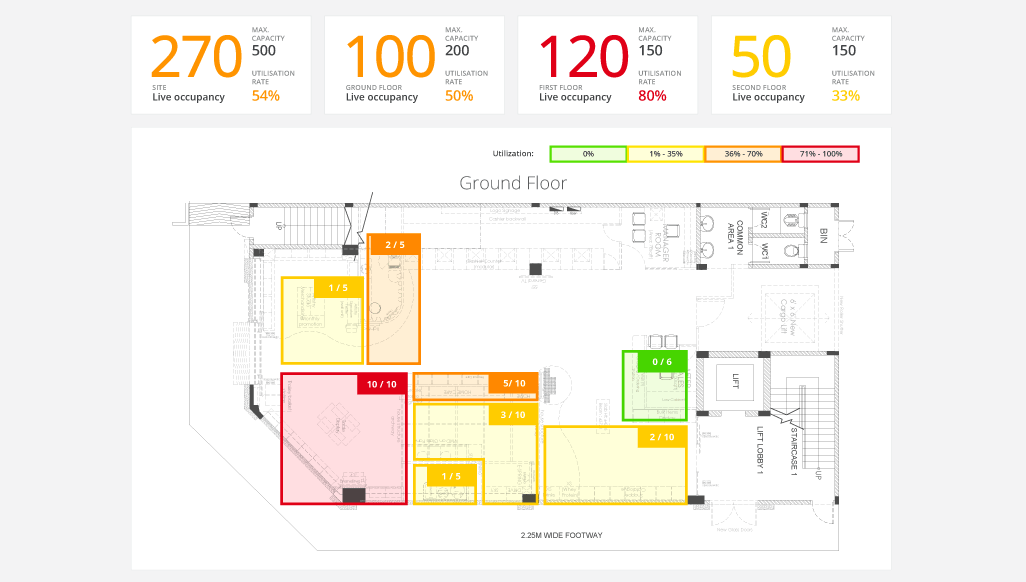

Real-Time Occupancy Tracking

Track the number of visitors in a building at any given time along with a smart display with live occupancy update. Alert staff when occupancy limit is breached.

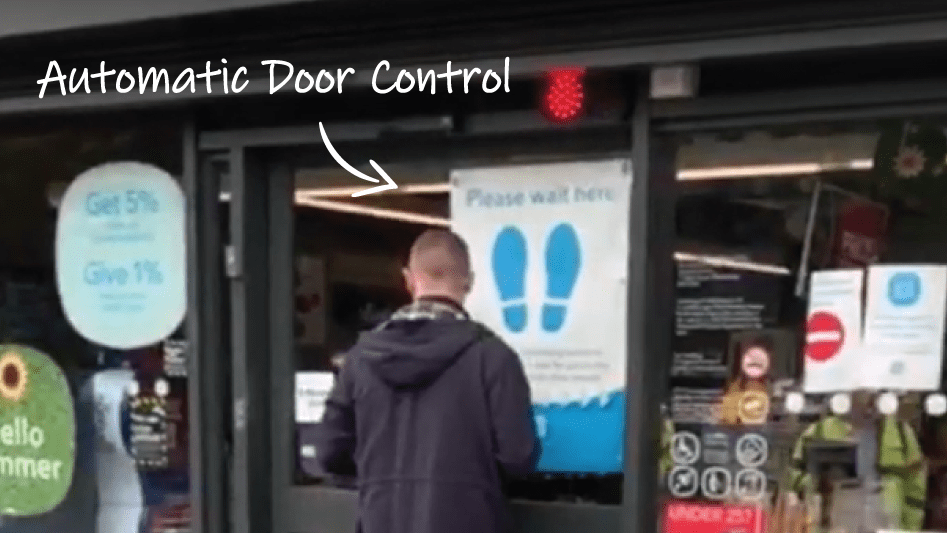

FootfallCam 3D Max - GPIO Functionality

GPIO Functionality

Integrate occupancy counting with all entrances and exits. When the occupancy level is reached, it will automatically close the door to prevent more customers from coming in.

FootfallCam 3D Max - Wifi Hotspot

Wi-Fi Hotspot

Function as an internet router that provides smooth high-speed internet for free Wi-Fi hotspot.

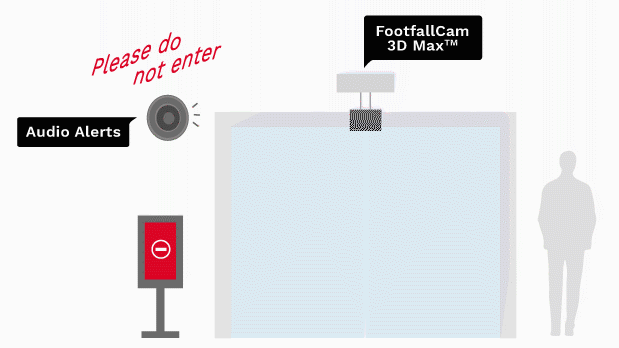

FootfallCam 3D Max - PA System

PA System Functionality

Compatible with all standard powered speakers to broadcast promotional messages on the product when customer interacts with the shelf display.

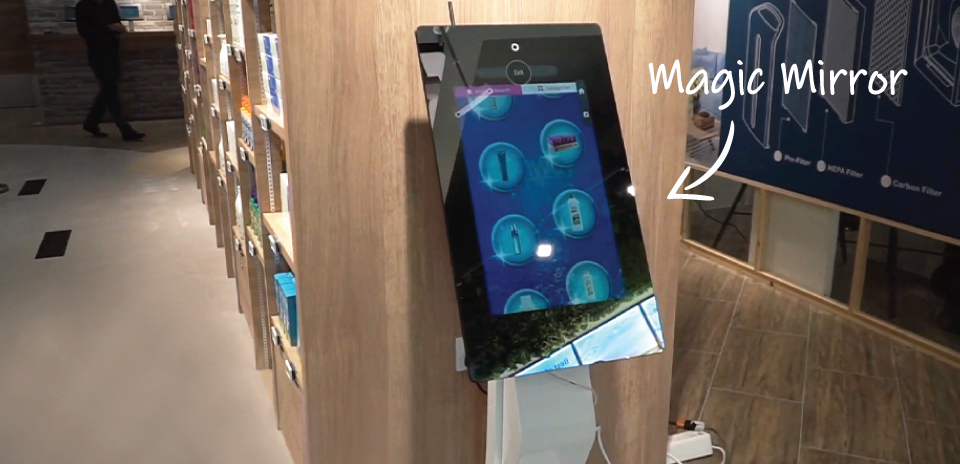

FootfallCam 3D Max - In-Store Kiosk Integration

In-Store Kiosk Integration

Integrates with Magic Mirror to perform interactive advertisement, brand promotion, virtual makeup/dressing and loyalty card kiosk

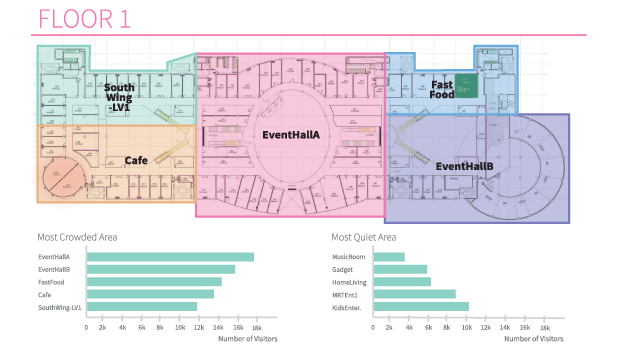

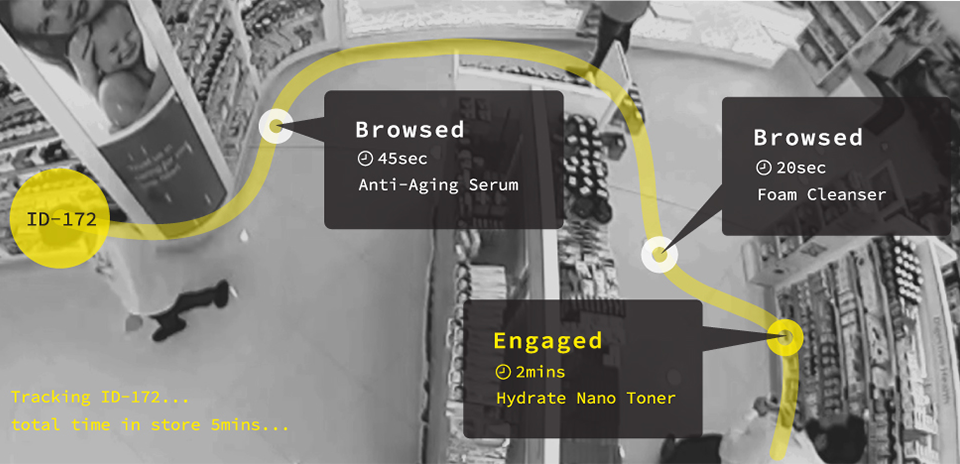

FootfallCam 3D Max - In-Store Analytics

In-Store Analytics

Views of multiple counters can be combined and stitched to continuously track each visitor’s entire journey through the store.
