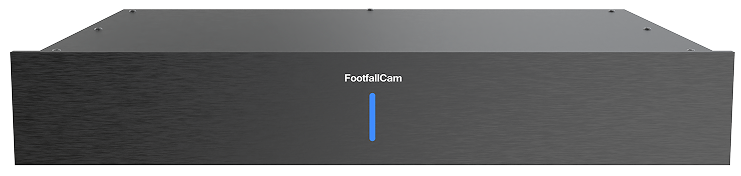

1.0 FootfallCam Centroid™
Device Specification

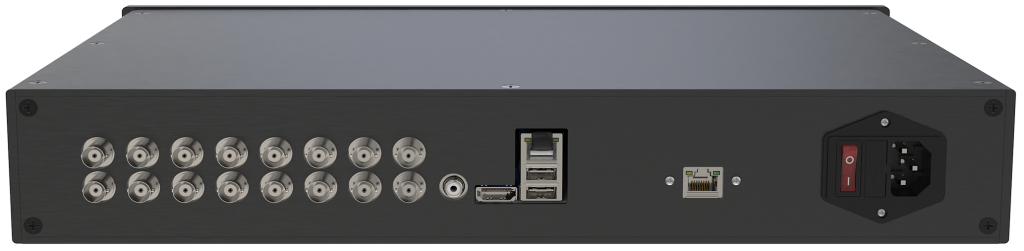

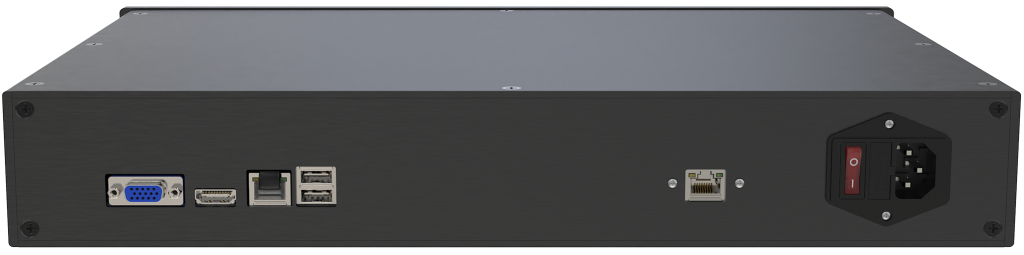

| Model | Centroid-DVR16 |
Centroid-NVR32 |
 |
 |
|
| Type | Hybrid NVR + AI | NVR + AI |
| Camera Channels | 16 | 32 |
| NPU | 16 TOPS | 24 TOPS |
| Input Type | Analog + IP | IP Only |
| Dimension | 419 (W) x 320 (D) x 68 (H) | |
| Weight | 5.4kg | |
| Casing Colour | Black | |
| Casing Material | Anodised Aluminum | |
| Memory | Up to 16GB 128-bit LPDDR4X | |
| Origin | Designed in the UK, Assembled in Malaysia. | |

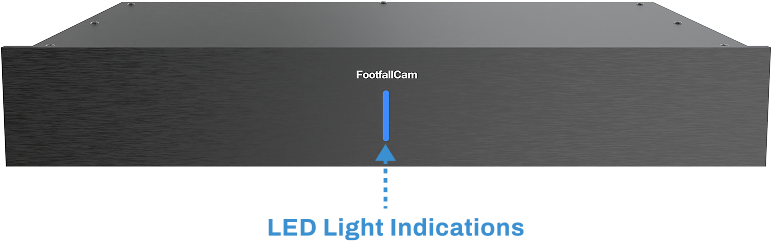

FootfallCam Centroid uses a LED backlight to indicate the power status of the Centroid.
FootfallCam Centroid™ is an AI video analytics platform designed to integrate with existing CCTV infrastructure. It supports up to 64 CCTV camera channels for real-time video analytics, enabling applications such as people detection, tracking, occupancy monitoring, and object classification. Centroid provides an efficient edge-based solution for transforming existing CCTV systems into intelligent video analytics systems without requiring additional dedicated counting hardware.
| LED Colour | Indication |
| ⬤ Constant Blue | Connected to server & paired. |
| ◑ Flashing Blue | Device is not paired |
| ⬤ Constant Green | Server Connection Issue |
| ◑ Flashing Green | Network Configuration Issue |
| ⬤ Constant Yellow | Cable or Wiring Issue |

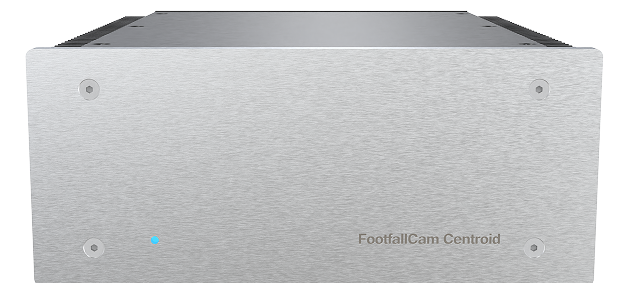

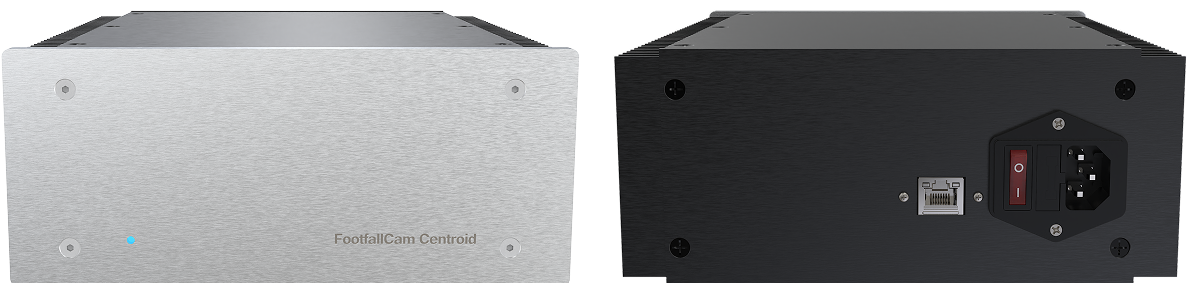

2.0 FootfallCam Centroid AI™
Device Specification
| Model | Centroid-8 |
Centroid-16 |
Centroid-32 |
Centroid-64 |
 |
|
|
 |
|
| Type | AI | AI | AI | AI |
| Camera Channels | 8 | 16 | 32 | 64 |
| NPU | 6 TOPS | 12 TOPS | 24 TOPS | 48 TOPS |
| Input Type | IP Only | IP Only | IP Only | IP Only |
| Dimension | 212 (W) x 268 (D) x 100 (H) | 419 (W) x 320 (D) x 68 (H) | ||
| Weight | 3.0kg | 3.1kg | 3.2kg | 5.4kg |
| Casing Colour | Silver with Black | Black | ||
| Casing Material | Anodised Aluminum |
|||
| Memory | Up to 16GB 128-bit LPDDR4X |
|||
| Origin | Designed in the UK, Assembled in Malaysia. |
|||
3.0 FootfallCam Centroid (Controls and indicators)
| Device Specification | ||
| Dimension | Device dimension: | 104 mm(W) x 81 mm(D) x 60 mm(H) |
| Packing dimension: | 200 mm(W) x 119 mm(D) x 78 mm(H) | |
| Weight | Device weight: | 0.27 kg |
| Packing weight: | 0.70 kg | |
| Casing | Colour: | Black |
| Material: | Metal | |
| Storage | Micro SD, 16 GB memory | |
| Ideal Mounting Height | 3 metres - 4 metres | |
| Ori{"type":"block","srcIndex":7,"srcClientId":"f87c18d0-28e8-4bb8-baa2-e1c4df9ba0c5","srcRootClientId":""}gin |
Made in UK. |
|
FootfallCam Centroid uses a LED backlight to indicate the power status of the Centroid.
FootfallCam Centroid™ processes up to eight HD full-motion video streams in real-time and can be deployed as a low-power edge intelligent video analytics platform for Network Video Recorders (NVR), smart cameras, and IoT gateways. Applications include human detection, pose estimation and car detection.
|
LED Colour |
Indication |
|
No Light |
Centroid is not powered up |
|
Blue |
Centroid is powered up - no issue |
4.0 FootfallCam Centroid Outdoor (Controls and indicators)
|
LED Colour |
Indication |
|
Blue |
Normal |
|
Purple |
Got internet but cannot reach FFC server testproxy.html |
|
Green |
Either 4G service not running, or service running but cannot ping ppp0 interface |
