Overview

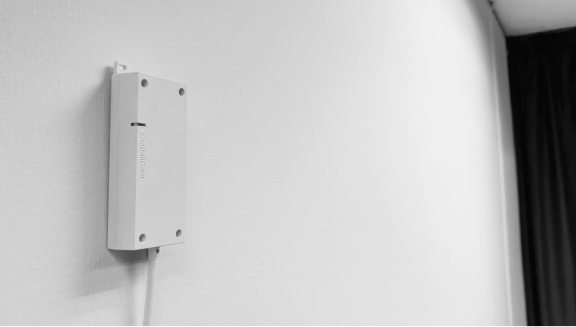

With the FootfallCam Mesh Hub™, a Network Gateway for IoT Devices, you can effortlessly connect up to 50 IoT devices and establish seamless connectivity to our cloud solution. Designed primarily as a Network Gateway for FootfallCam IoT Devices, it also has the flexibility to work with third-party sensors, with multiple network connectivity options, including Bluetooth, RS485, Ethernet, 4G, LoRa and BACnet. This ensures compatibility and easy integration with a wide range of IoT devices, allowing you to create a robust and efficient network ecosystem.
Supporting various network connectivity options across all distances, from local to global, to collect data from IoT sensors and send it to a central server.
Mesh Hub Essential is ideal for projects with IoT sensors that require continuous sensing data, RS485 series connection is a reliable and cost effective option to fulfil this requirement.
Suitable for: Offices and Washrooms
It is the go-to choice for office and building deployments. Its reliable and high-speed Ethernet connectivity ensures seamless data transmission between IoT devices and the central server, catering to the needs of diverse applications.
Suitable for: Offices and Buildings
Designed to support estate-wide connectivity across multiple buildings in the same vicinity and public washrooms scattered around various locations, all captured data can be uploaded to a central server via a LoRa gateway.
Suitable for: City, Universities and Washrooms
Provides the flexibility to maintain an independent network layer without the need to navigate through corporate network layers or install dedicated network points at each application location.
Suitable for: Buses and any applications that requires standalone network
Key Features
Supports a series connection via RS485 connectivity
Bluetooth, LoRa, Power-over-Ethernet (PoE) and 4G connectivity
Can connect up to 50x FootfallCam IoT Devices to the cloud solution
Low power consumption, support stable voltage supply for daisy chain 50 units of IoT devices
User-centric LED indication device status, which facilitates the diagnosis of gateway status
A standalone network layer, doesn’t compromise your corporate security

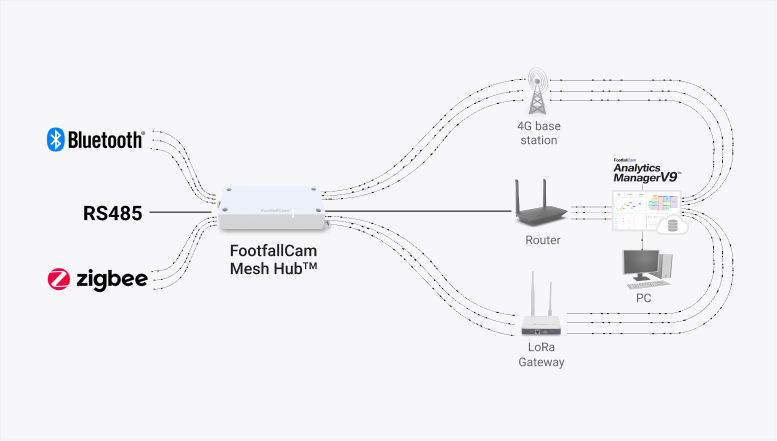

Network Topology
An IoT gateway, serving as a central hub, seamlessly connects IoT devices, enabling communication and data processing, facilitating device-to-device and cloud interactions for a wide range of applications.
Network Communications Supported
The Mesh Hub™ supports downstream connectivity options such as Bluetooth, RS485, and BACnet, while offering upstream connectivity options including 4G, Ethernet (PoE), and LoRa.
Use Cases
Designed to accommodate diverse business scenarios
Mesh Hub™ serves as a centralised network gateway for IoT devices, demonstrating its effectiveness in various settings such as city areas, offices, universities, buses, and washrooms.
The Mesh Hub™ functions as a crucial IoT gateway in Smart City projects. It efficiently connects diverse IoT devices, such as sensors and people counters, across various locations within the city.
Supporting a wide array of connectivity options like LoRa and Ethernet, it ensures seamless data transmission to the cloud, enabling comprehensive data analysis and management for improved urban planning and services.

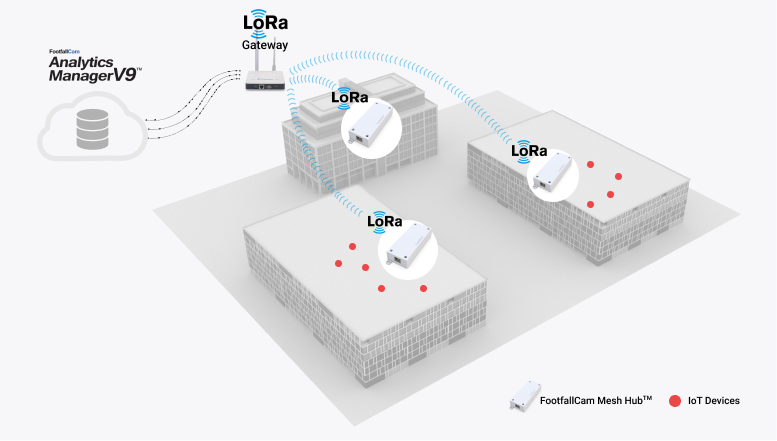

Mesh Hub™ provides a vital solution for universities and colleges seeking to connect people counters and IoT devices across multiple floors and buildings within their campus.
Mesh Hub LoRa™ enables seamless data transmission to the cloud via a LoRa gateway.

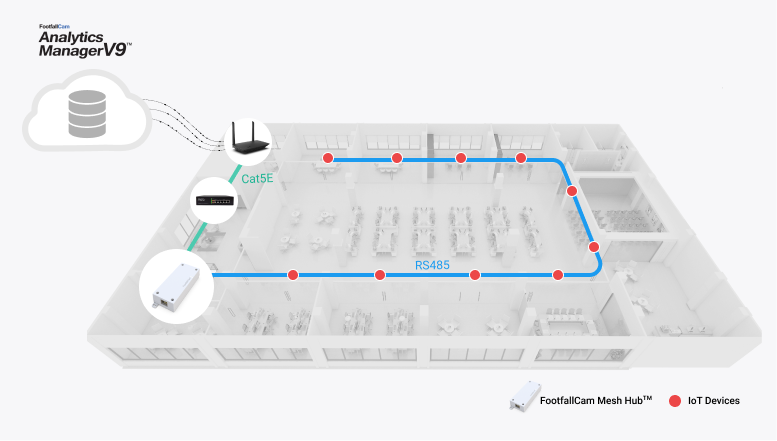

Mesh Hub™ unifies all IoT devices (such as FootfallCam 3D Mini, FootfallCam Space Sense, DeskTag, and RoomTag) in a standalone network layer through Bluetooth and RS485 connectivity. This eliminates the need to piggyback on the corporate LAN or WiFi network.
The Mesh Hub uploads the collected data to the cloud solution using an Ethernet connection.

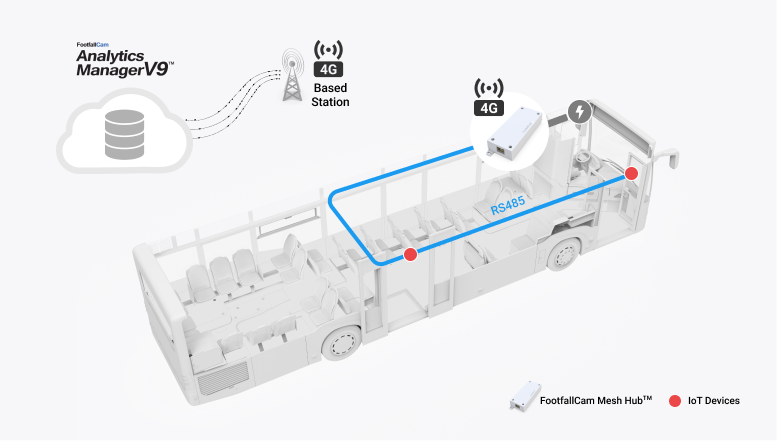

The Mesh Hub™ is designed to connect FootfallCam 3D Mini devices on buses using RS485 series connections.
Mesh Hub supports 4G connectivity, enabling the direct upload of data from the devices to the cloud solution via the 4G connection, eliminating the need for an on-board router. This streamlined setup ensures efficient data transfer from buses to the cloud solution.
The Mesh Hub™ is ideal for washrooms across buildings, connecting FootfallCam 3D Mini devices via RS485 daisy-chained links for effortless cloud data upload.
The Mesh Hub LoRa™ also provides a practical solution for managing data from scattered washrooms. This upload is made possible using a LoRa gateway with LoRa connectivity, ensuring efficient data transfer.
