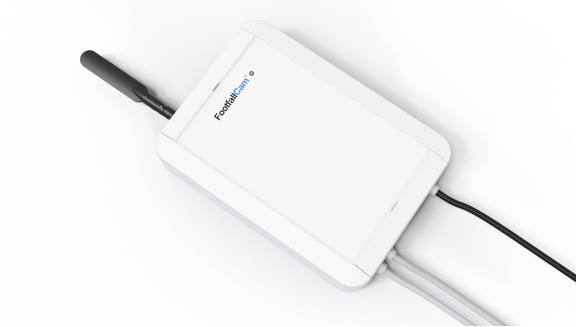

FootfallCam Centroid Outdoor™

Adding AI Video Analytics to Your Outdoor CCTV

  • Processes up to 4 CCTVs in real-time
  • Designed for outdoor counting for pedestrians, cyclists and vehicles
  • Supports GPS and 4G network connectivity
  • Waterproof enclosure with wall and pole mounting brackets
  • Compatible with any CCTV IP cameras
  • Easy to install, maintain, and integrate on FootfallCam Server or On-Premise Server.
  • Made in UK; Manufactured by ODM

About this item

FootfallCam Centroid Outdoor™ processes up to four HD full-motion video streams in real-time and can be deployed as a low-power edge intelligent video analytics platform for IP cameras, smart cameras, and IoT gateways. Data is transferred to the cloud via 4G connection. Applications include human detection, pose estimation and vehicle detection.

Downloads

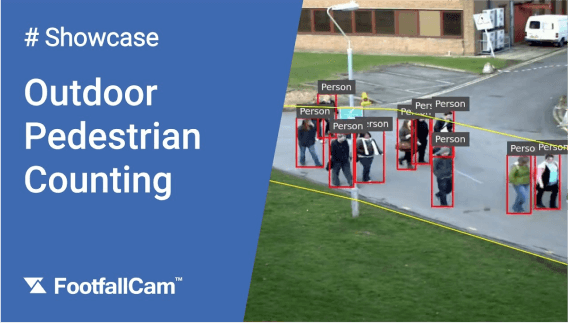

AI Video Analytics
for Street Counting

Measure the usage of public facilities such as walk-way, pedestrian crossing or footbridge by traffic volume in order to improve or build new infrastructure in high-traffic areas as part of the planning in a smart city, included:

Pedestrian behaviour on facility usage

Predictive count of each hour

Streets traffic pattern visualisation with pedestrian and vehicle counting

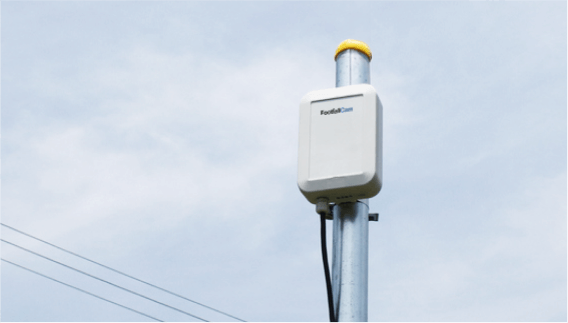

Waterproof & Weatherproof for Outdoor Usage

The FootfallCam Centroid Outdoor™ uses ASA plastic Enclosure with UV resistance, chemical resistance, heat resistance, and antistatic on outdoor exposure. It is tough and has 10 times the weathering resistance compared with ABS products. It is specially designed to be easily mounted on a pole using the mounting bracket. All connections are well protected with waterproof cable glands and rubbers, even including the 4G Antenna for internet connectivity.

FootfallCam Centroid Outdoor - For Outdoor Usage

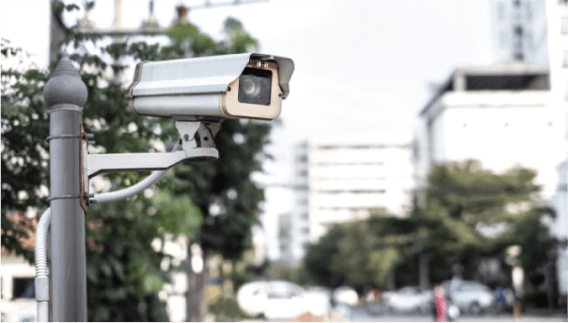

FootfallCam Centroid Outdoor - Reuse Existing CCTV Cameras

Reuse Existing CCTV Cameras, Reduce Infrastructure Cost

FootfallCam Centroid Outdoor™ requires minimum deployment cost as it can be integrate with the existing CCTV IP Cameras and the system can be easily maintained by any town councils. By adding the AI Video Analytics on the top of the CCTV infrastructure, it helps to measure the usage of public facilities such as walk-ways, pedestrian crossings or footbridges by traffic volume in order to improve or build new infrastructure in high-traffic areas as part of the high street or city planning.

Read More

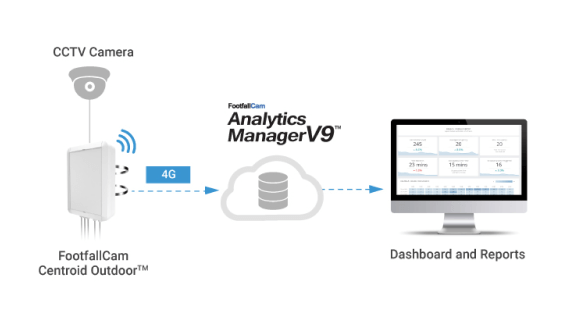

Support 4G Network Connectivity

Mobile connectivity allows FootfallCam Centroid Outdoor™ to be installed in any outdoor environment. It does not require fibre optic connection, WiFi, or ethernet connection. A standalone network without having to go through your private corporate network. All real-time videos are processed and the data are transmitted to the server at the same time. The data will be uploaded to FootfallCam Analytics Manager v9™ via 4G network, any authorised users would be able to login and access the dashboard and reports.

FootfallCam Centroid Outdoor - Network System

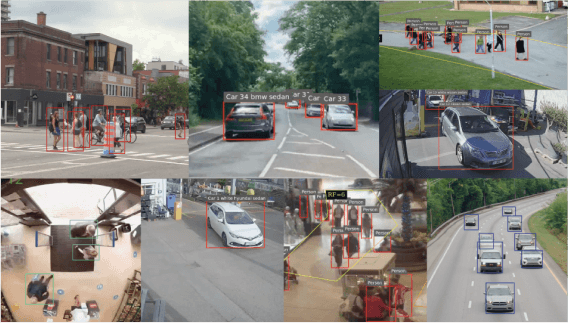

FootfallCam Centroid Outdoor - Multi Stream Video Analytics

Multi Stream Video Analytics

FootfallCam Centroid Outdoor™ processes up to four HD full-motion video streams in real-time and can be deployed as a low-power edge intelligent video analytics platform for IP cameras, smart cameras, and IoT gateways. The aggregated data from each raw video stream are available to be accessed through FootfallCam Analytic Manager V9™ with ready-made modules and reports.

One Device, Multiple Applications

Supports multiple counting functions in a single device, in which users can use interchangeably
or relocate to use for other functions.

FootfallCam Centroid Outdoor - Pedestrian Counting

Pedestrian Counting

FootfallCam Centroid Outdoor - Vehicle Counting

Vehicle Counting

FootfallCam Centroid Outdoor - Cyclist Counting

Cyclist Counting

FootfallCam Centroid Outdoor - Area Counting

Area Counting

FootfallCam Centroid Outdoor - Crowd Counting

Crowd Counting

Optimised for Outdoor Environments

FootfallCam Centroid Outdoor™ is specially designed for outdoor usage, even under all extreme weather conditions.

FootfallCam Centroid Outdoor - Support 4G Network

Support 4G
Network

Adaptive high speed connectivity, standalone network

FootfallCam Centroid Outdoor - 4+ years battery life

Waterproof & Weatheroof

IP66 ASA Plastic Enclosure

FootfallCam Centroid Outdoor - Wireless Sensor

Easy to Mount

Stainless steel Pole Mounting belt for
60 Φ ~ 400 Φ

FootfallCam Centroid Outdoor - Connect Up to 4 CCTV Cameras

Connect Up to 4 CCTV Cameras

Build-in 4 ethernet output

FootfallCam Centroid Outdoor - GPS

GPS

Real-time GPS location for counting data


Product Specification

Technical Details

CPU

64-bit Quad-core @ 1.43GHz

GPU

128-core @ 921MHz

Memory

4GB 64-bit LPDDR4 @ 1600MHz | 25.6 GB/s

Video Encoder

4Kp30 | (4x) 1080p30 | (2x) 1080p60

Video Decoder

4Kp60 | (2x) 4Kp30 | (8x) 1080p30 | (4x) 1080p60

Wireless Connectivity

LTE-TDD B34/B38/B39/B40/B41

LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/
B19/B20/B25/B26/B28/B66

UMTS/HSDPA/HSPA+ B1/B2/B4/B5/B6/B8/B19

Power

13W

Networking

4x 100Mbps Ethernet (RJ45)

Wireless

M.2 Key-E with PCIe x1

Storage

MicroSD card (16GB UHS-1 recommended minimum)

SIM Card

4G/LTE/3G

Network Bands

LTE – FDD B1/B3/B5/B7/B8/B20

LTE – TDD B38/B40/B41 UMTS/HSPA + B1/B5/B8

GSM/GPRS/EDGE 900/1800 MHz

Power Supply

110-240 VAC
